ELECTRIC - Mini Truck
MINI TRUCK
Highlights
BAW Mini truck EV is a subversive product, carefully crafted from hardware to system to service.
Its goal is to meet the needs of fixed routes, turnover, and light-load distribution, especially for community grid distribution with relatively short delivery distances.
At the same time, it has the characteristics of convenient charging and right of way advantages. The appearance is stylish and has a sense of power.
It has a MINI body, steering stable under high speed, light under low speed, flexible and convenient. Whether in carrying capacity, safety, comfort or driving speed, it’s far superior comparing to traditional short-distance transportation facilities.
- Low transportation cost and convenient charging, suitable for various transportation scenarios such as express delivery, logistics, sanitation, clearing, refrigeration, fire protection, etc
- Easy to carry goods, the volume of the van can reach 3.6m3, really large space for a mini truck
- The cruising range is 140 kilometers. All series are equipped with braking power energy recovery system as standard
- High-quality lithium iron phosphate power battery, with IP67 dustproof and waterproof grade, high safety and long service life
- 30kW max power motor, after special calibration, has larger torque and enough power
- Standard with ABS anti-lock braking system adopts a high-strength steel body frame, which has accumulated more than 1 million kilometers of road tests and extreme cold and high temperature tests to ensure vehicle secure and reliable

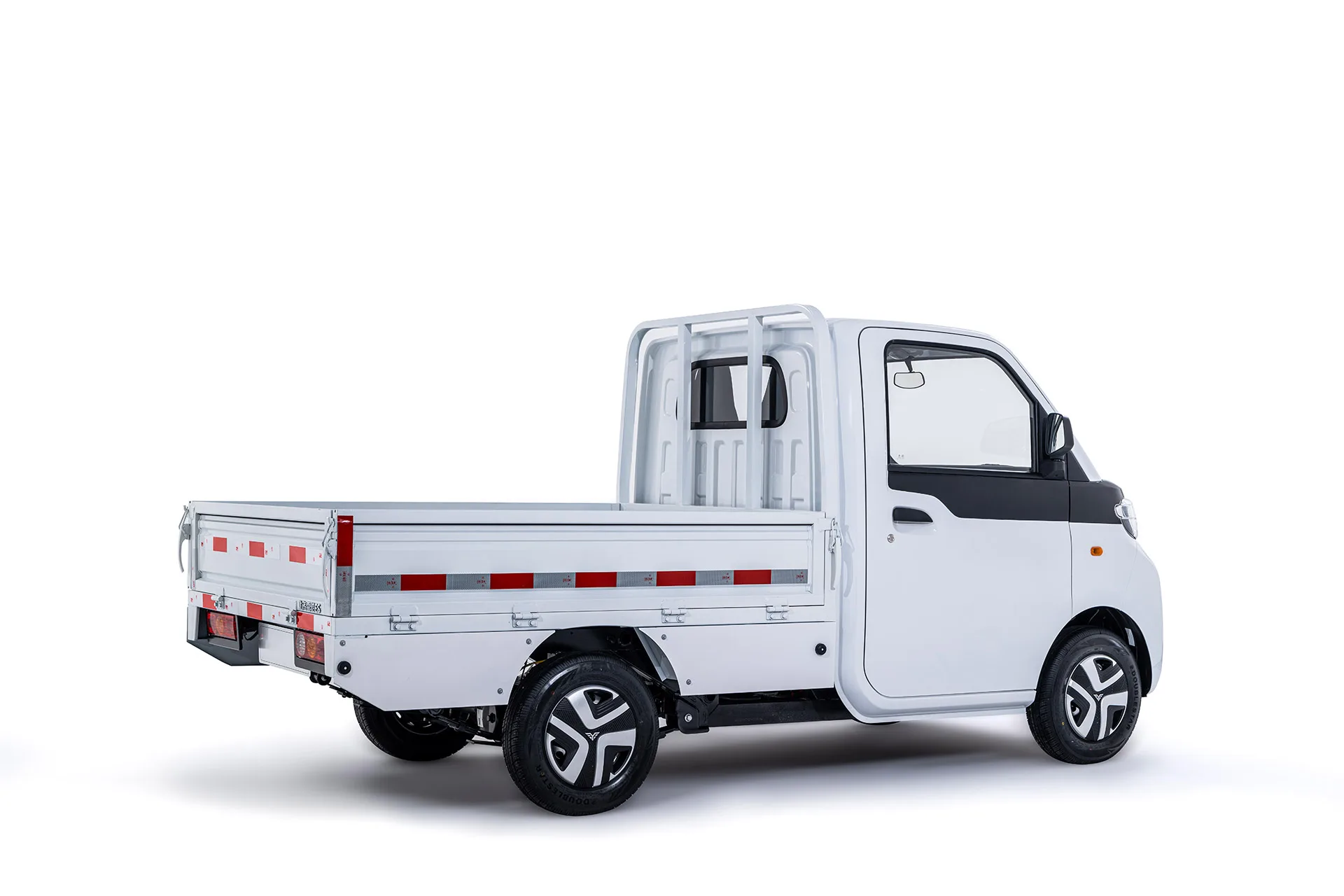

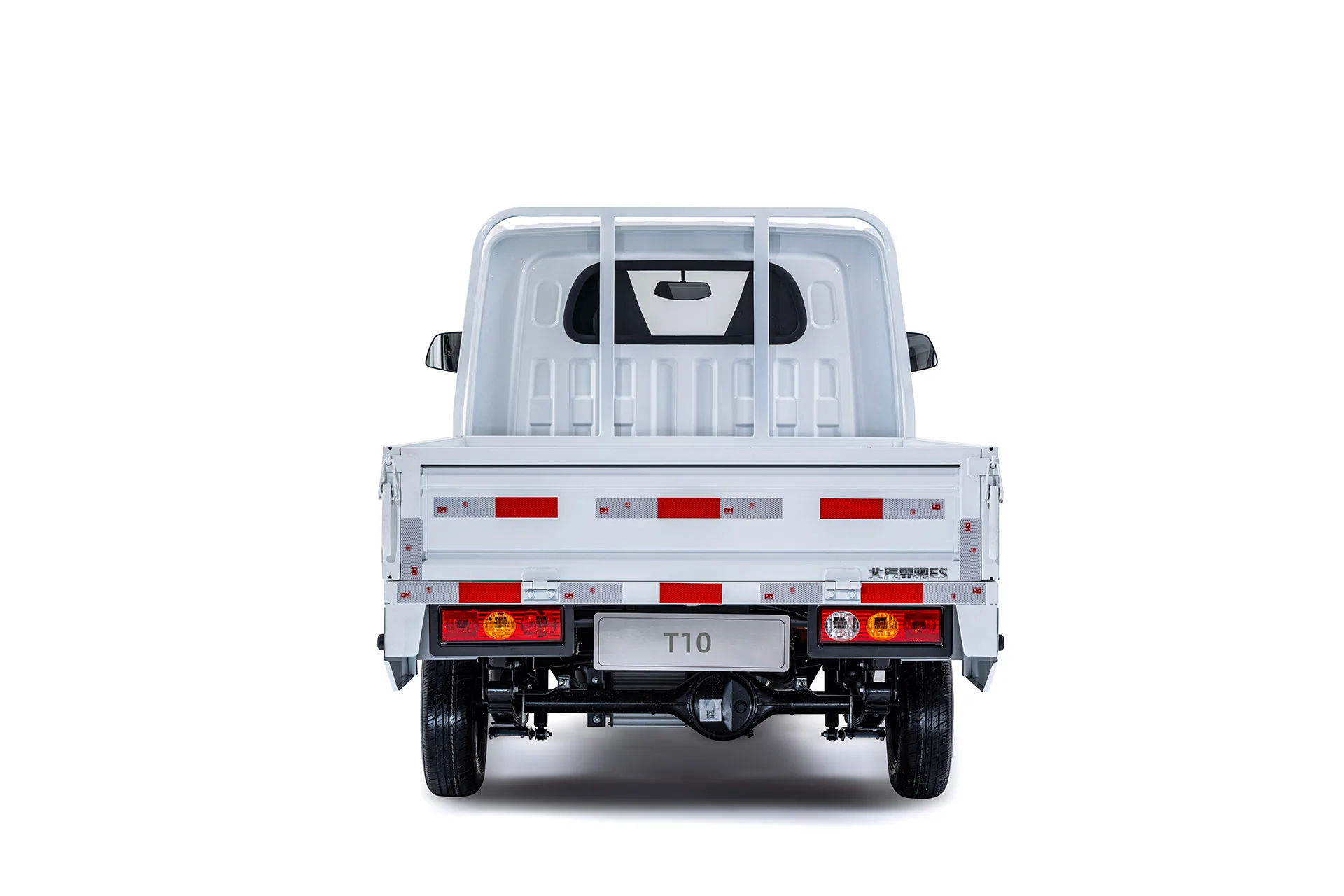

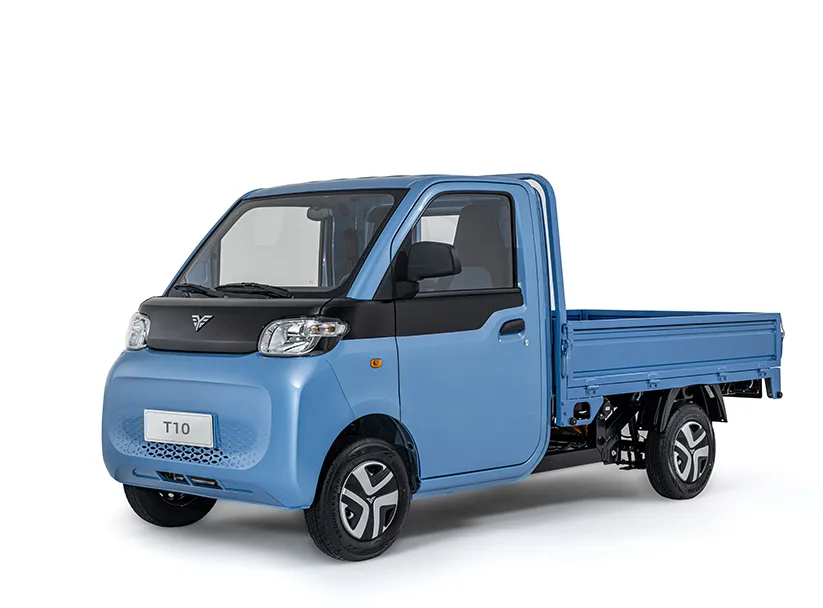

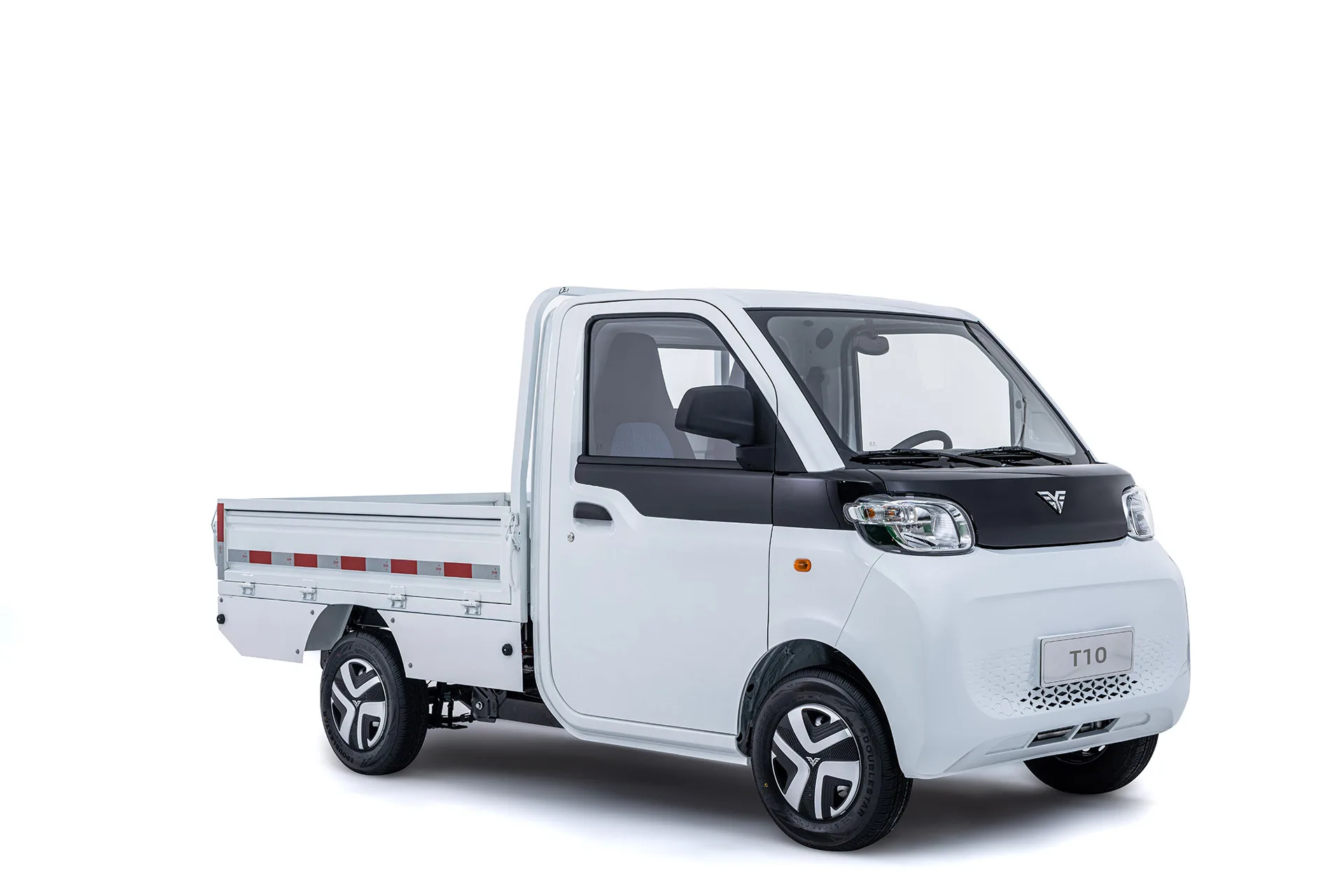

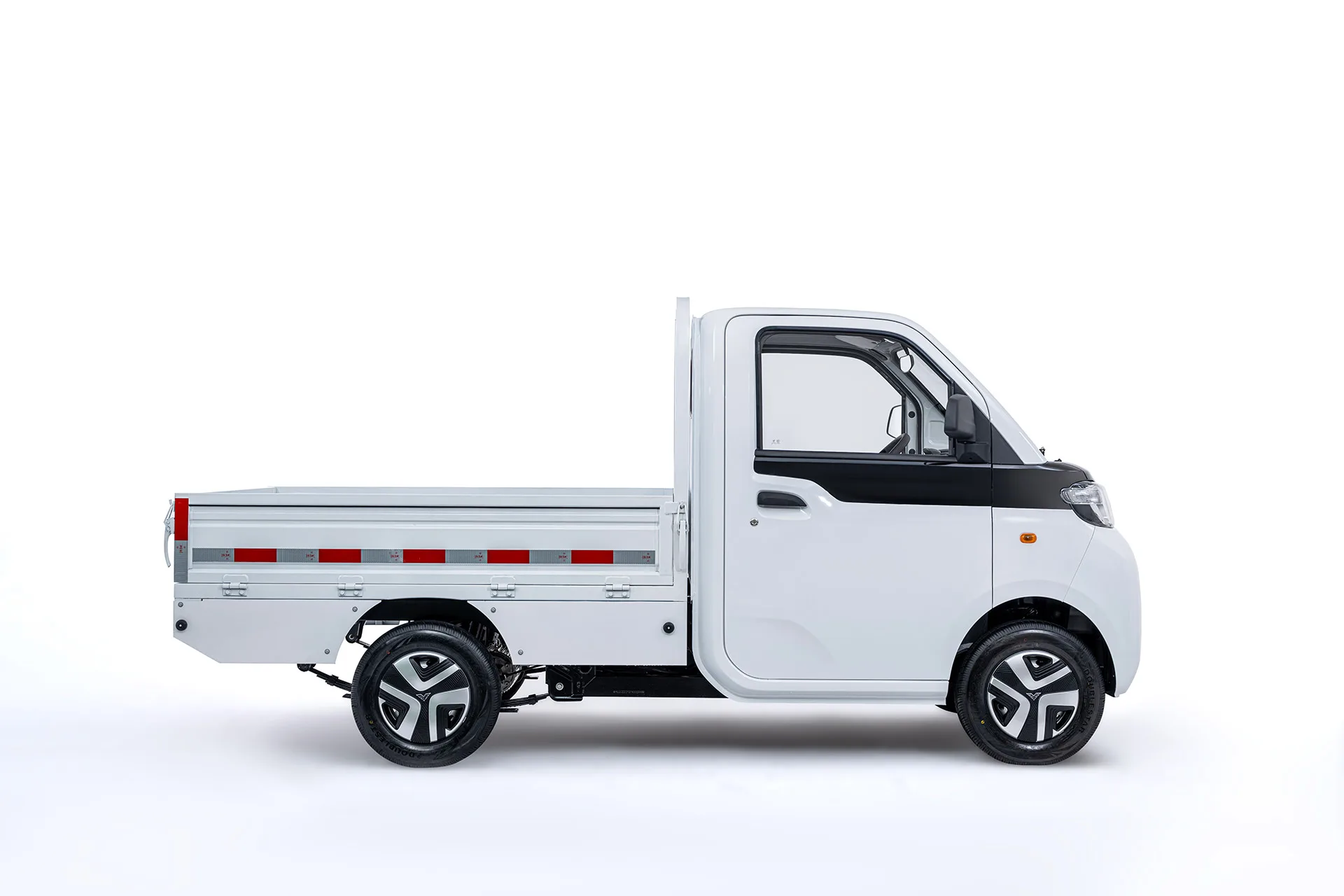

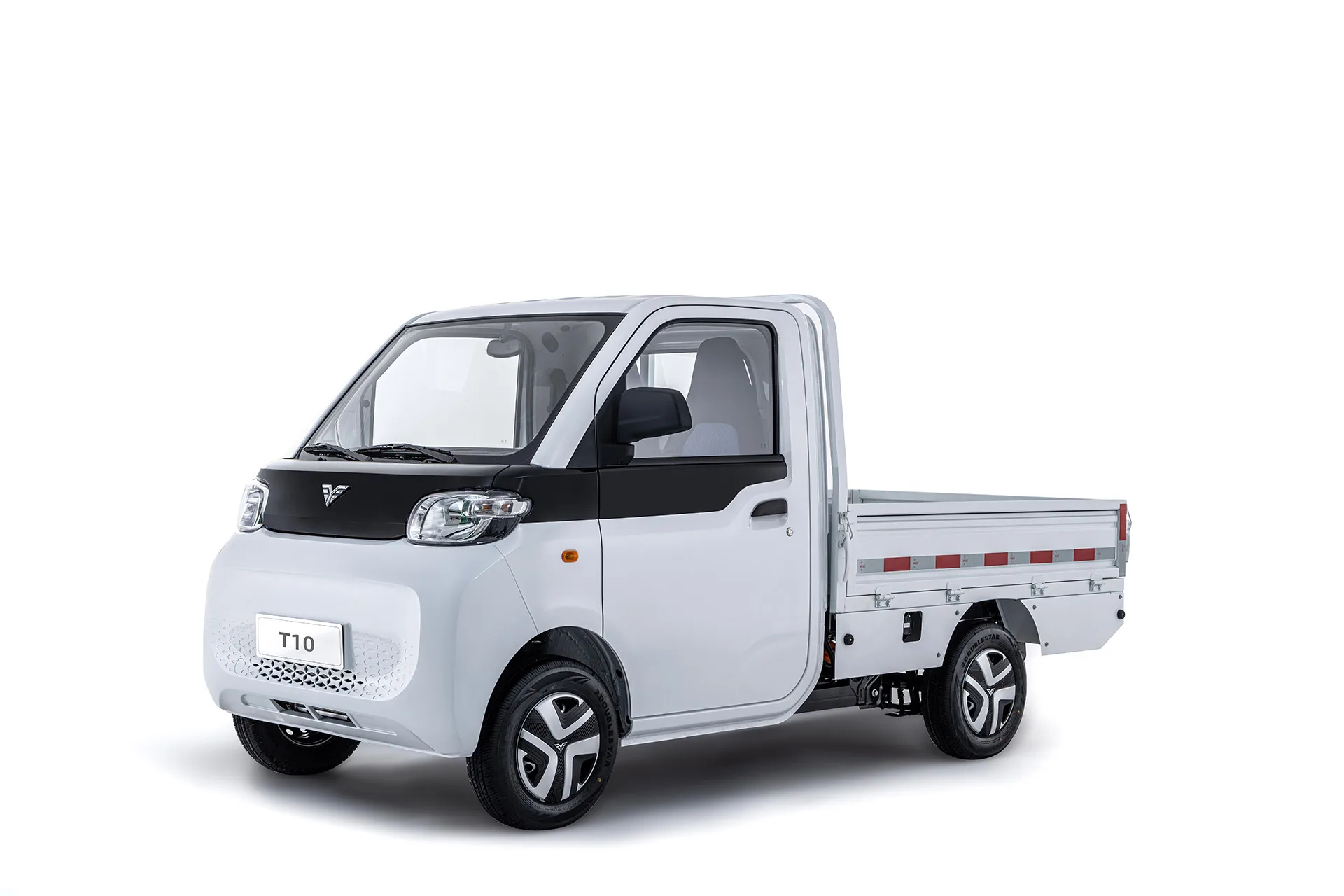

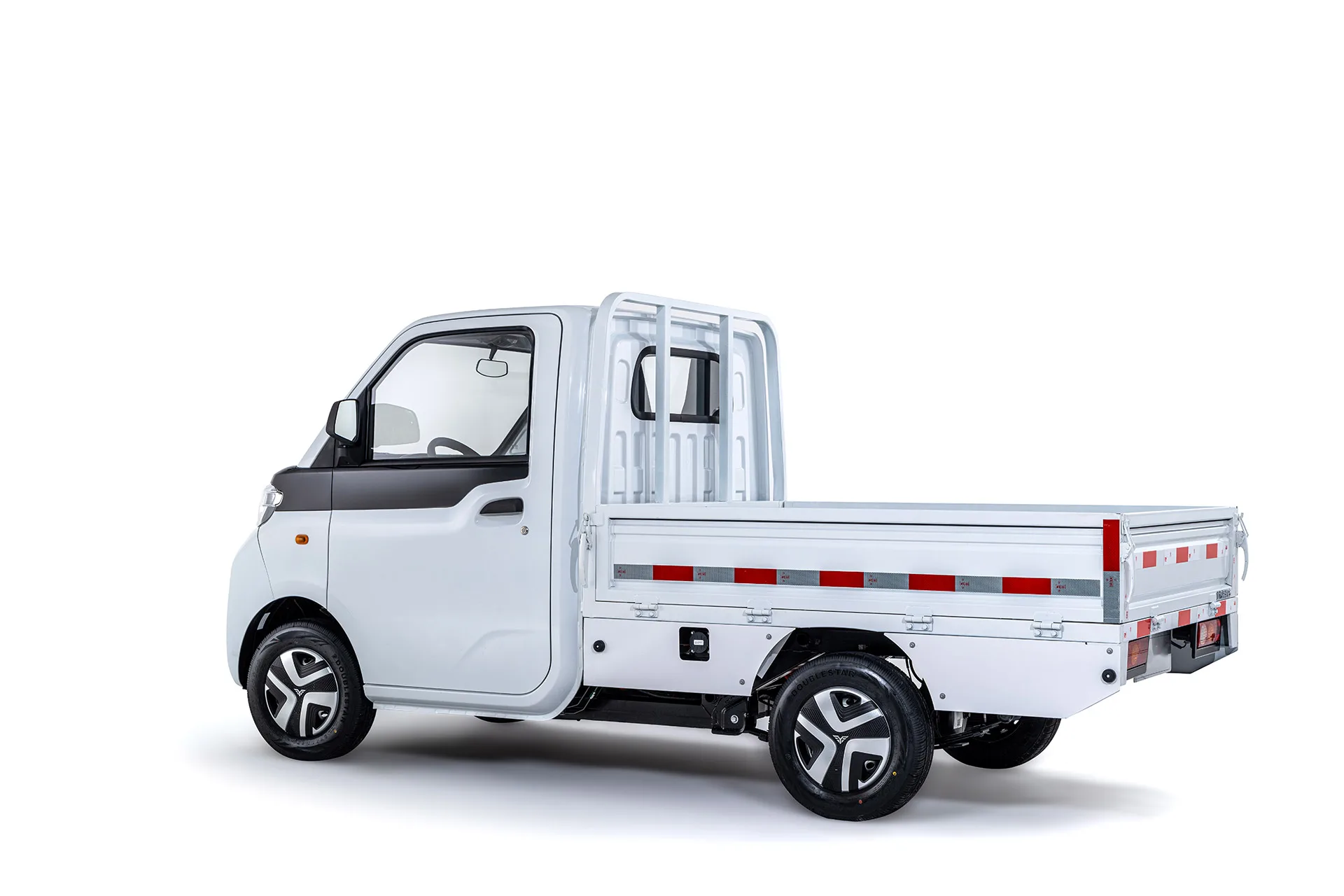

Mini Truck
TECHNICAL SPECIFICATIONS
| Model type | HLD1020PIB2IBEV |
| Body structure | 2 doors and 2 seats |
| Dimension (mm) | 3555/3820*1480*1705 |

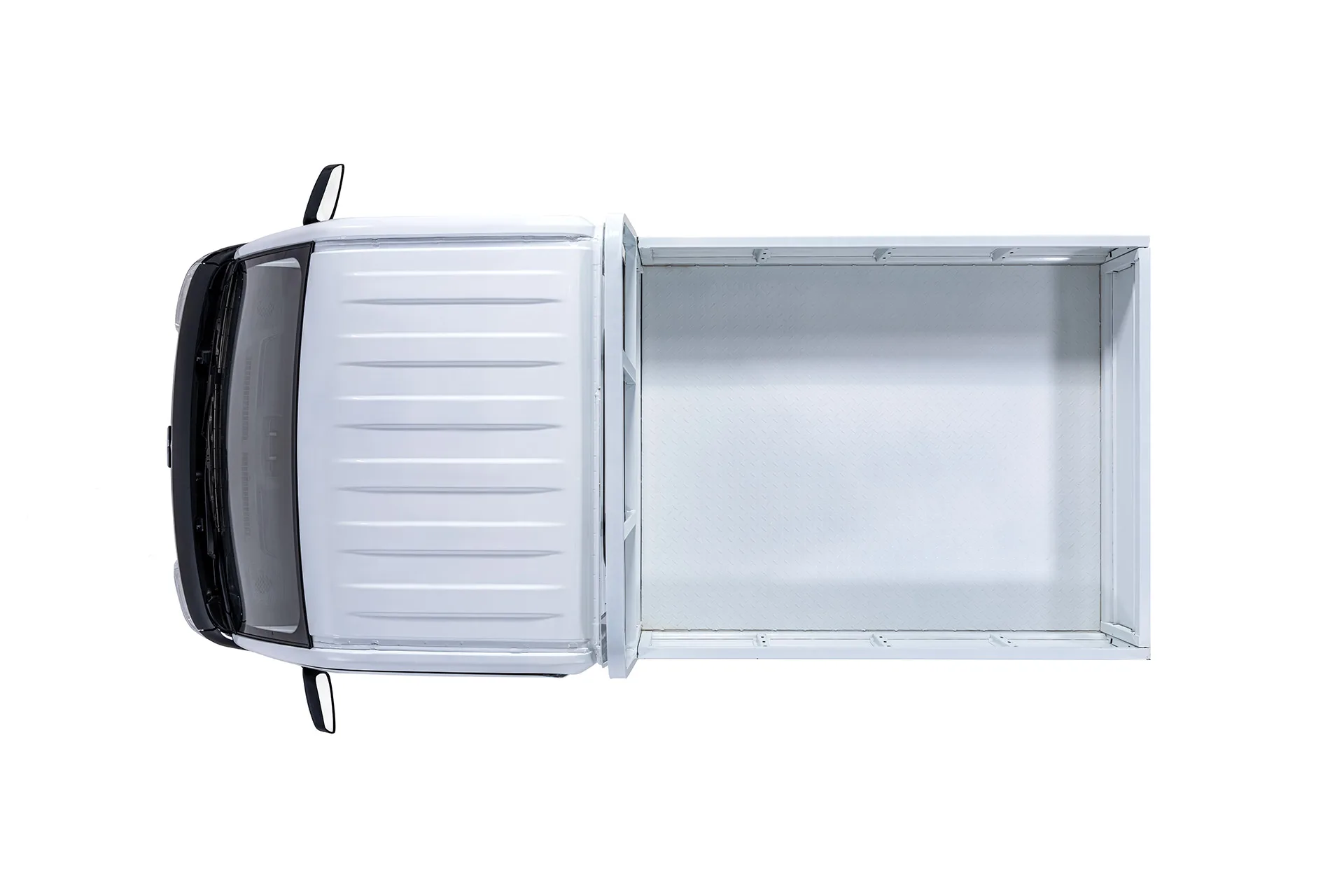

| Cargo box size (mm) | 1750/2015*1400*320/1200 |
| Wheelbase (mm) | 2200/2450 |
| Front/rear trackbase (mm) | 1290/1290 |
| Ground clearance (mm) | 144 |
| Curb weight (kg) | 880 |
| Payload capacity (kg) | 540 |
| Suspension front | McPherson independent |
| Suspension rear | Leaf Spring |
| Drive type | Rear drive |
| Brake type | Disc/Drum |
| Tire type | 145R12 LT 6PR |
| Battery type | Lithium iron phosphate battery (BMS) |
| Battery capacity (kWh) | 12.31/15.12 |
| Max speed (km/h) | 70 |
| Climbing ability | ≥20% |
| Range (km) | 80/140 |
| Motor type | PMS |
| Max Torque (N m) | 130 |
| Rated power/Max power (kW) | 15/30 |
