212 Off-road Vehicle
GASOLINE - 212 Off-road Vehicle
212 OFF-ROAD
Highlights
Part Time 4WD, simple structure but firm and reliable. The driver can manually switch the drive system between 2WD and 4WD, which is a common operation mode of off-road vehicles. The time-sharing 4WD can select the driving mode according to the actual situation in high-intensity off-road, making the off-road performance stronger.
The engine continues to use 4K22 Mitsubishi engine head. In order to match with current model, the engine foot fixing has been strengthened, and the exhaust pipe has been thermally insulated.
- Nominal maximum wading depth up to 600mm
- Maximum gradient of 60%
- Departure angle of 35° and Approach angle of 47° which can meet different requirements for most road conditions
- Front five-link coil spring non-independent suspension, rear 3+2 piecesteel-plate non-independent spring suspension
- Vehicle’s chassis with both front and rear hard axle, similar to Wrangler and JIMNY
Choose the one that looks most like you

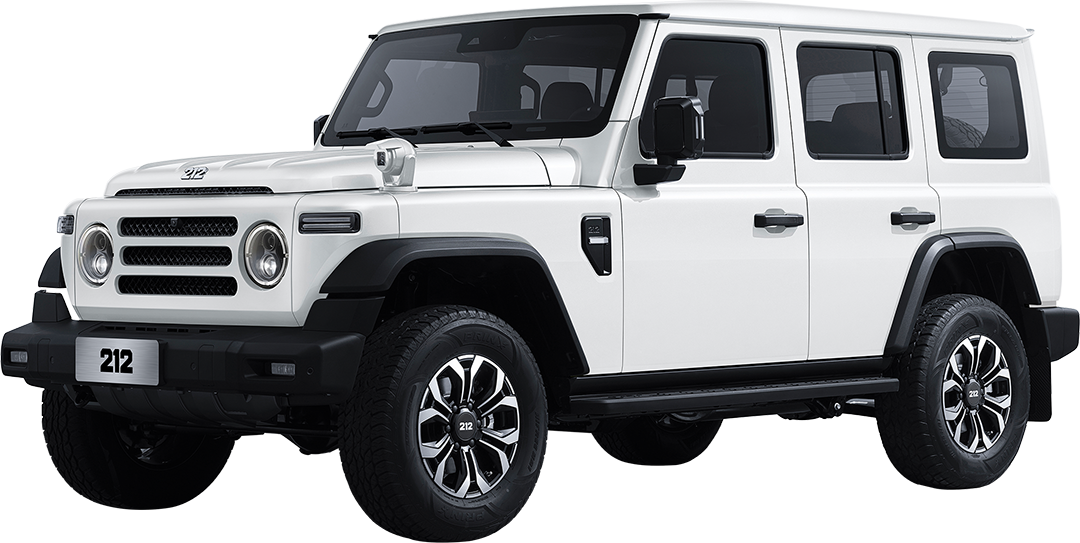

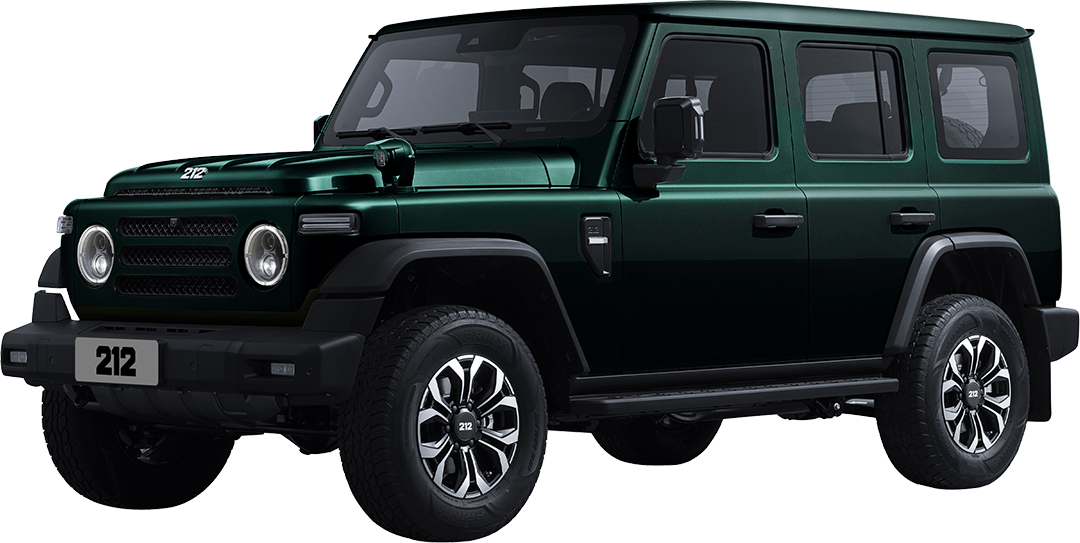

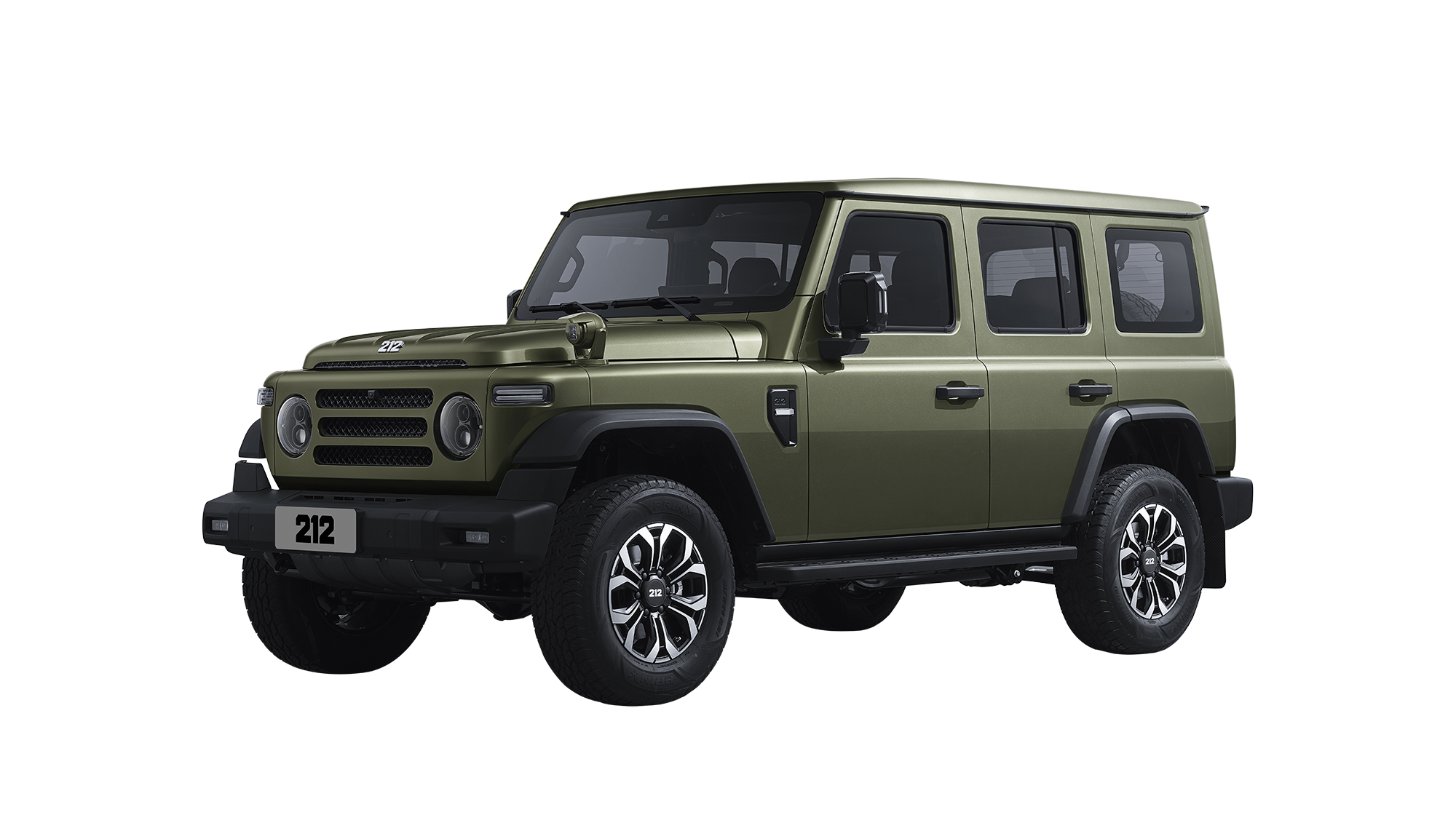

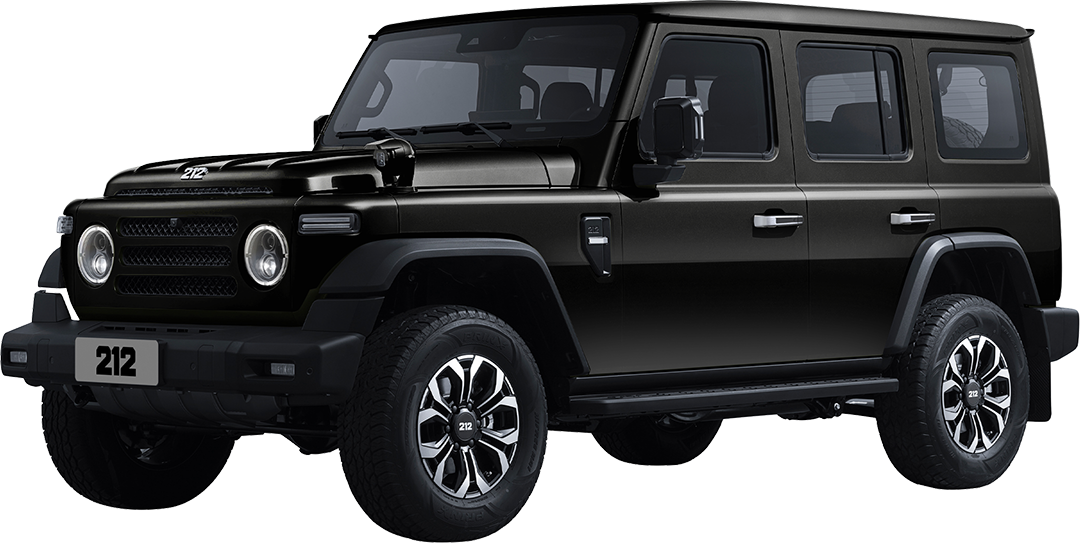

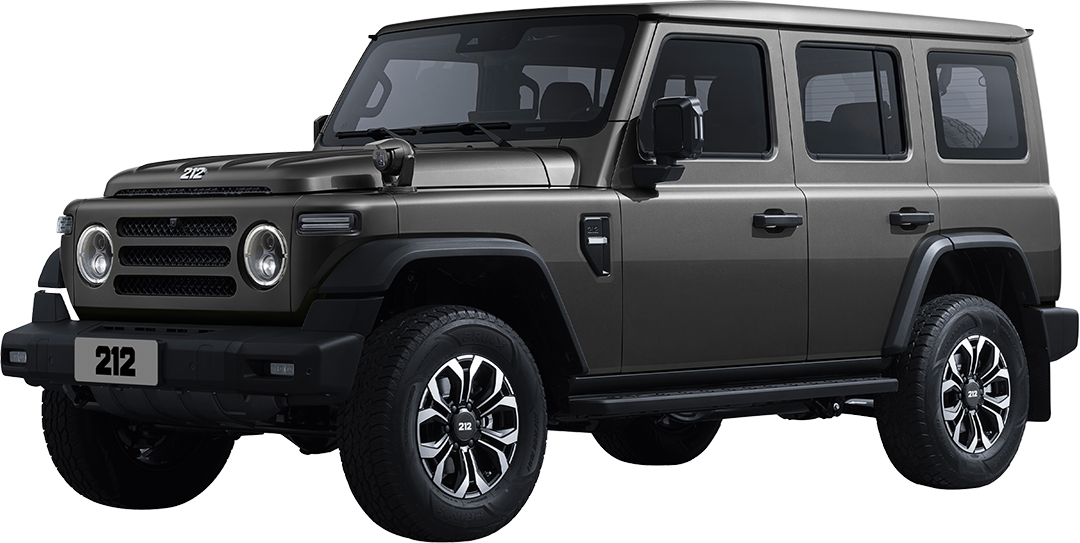

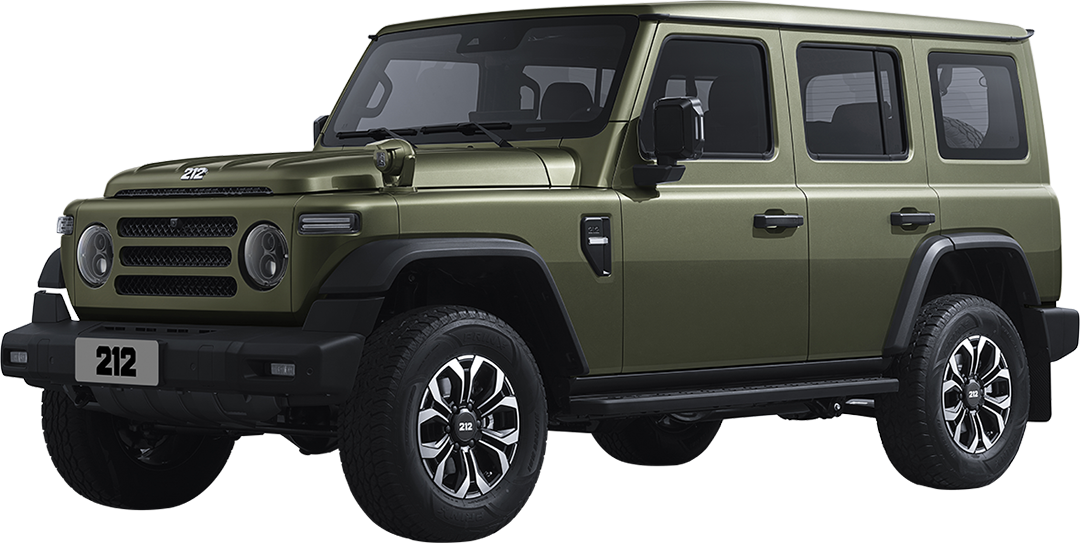

COLORS
TECHNICAL SPECIFICATIONS
| Body structure | Body on frame, 5 doors and 5 seats |
| Dimension (mm) | 4360*1890*1940 |
| Wheelbase (mm) | 2620 |
| Tread Front/Rear (mm) | 1540 |
| Angle of approach | 47° |
| Angle of Departure | 35° |
| Min. Ground Clearance (mm) | 245 |
| Displacement | 2.4T |
| Fuel Type | Gasoline |
| Max HP(Fs) | 211 |
| Max Power (Kw) | 155 |
| Max Torque (N/m) | 320 |
| Gearbox | 6MT |
| Drive Type | Four-wheel drive 4x4 |
| 4 Wheels Drive Type | Part Time 4WD |
| Brake type | Disc/Drum |
| Tire type | 265/75R16 |
| Suspension front | Double wishbone coil spring non-independent |
| Suspension rear | Leaf spring non-independent |
| Oil Tank Volume (l) | 70 |
