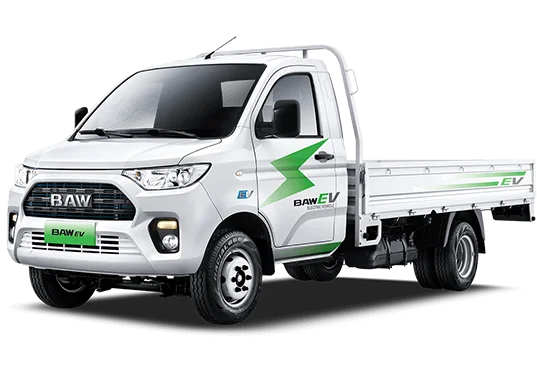

ELECTRIC - EV Small truck
Saving money
is an important goal
Highlights
BAW small truck EV use CATL brand 55.7kwh lithium iron phosphate battery pack, the power system is stable, safe and reliable.
Cruising range is up to 280km per charge, sufficient to transport cargo for hundreds of kilometers every day.
Additionally, fast charging is standard equipped on all versions, within 45 minutes SOC charging to 80%.
Moreover, the small truck EV has a motor with peak power 90kW and max torque 270N m, which makes power output very high and stable, allowing the vehicle to handle various conditions no matter in Urban or rural roads.
- New generation design, wide cabin and comfortable seats, broad field of vision, passenger car steering wheel smoother lines and a modern style

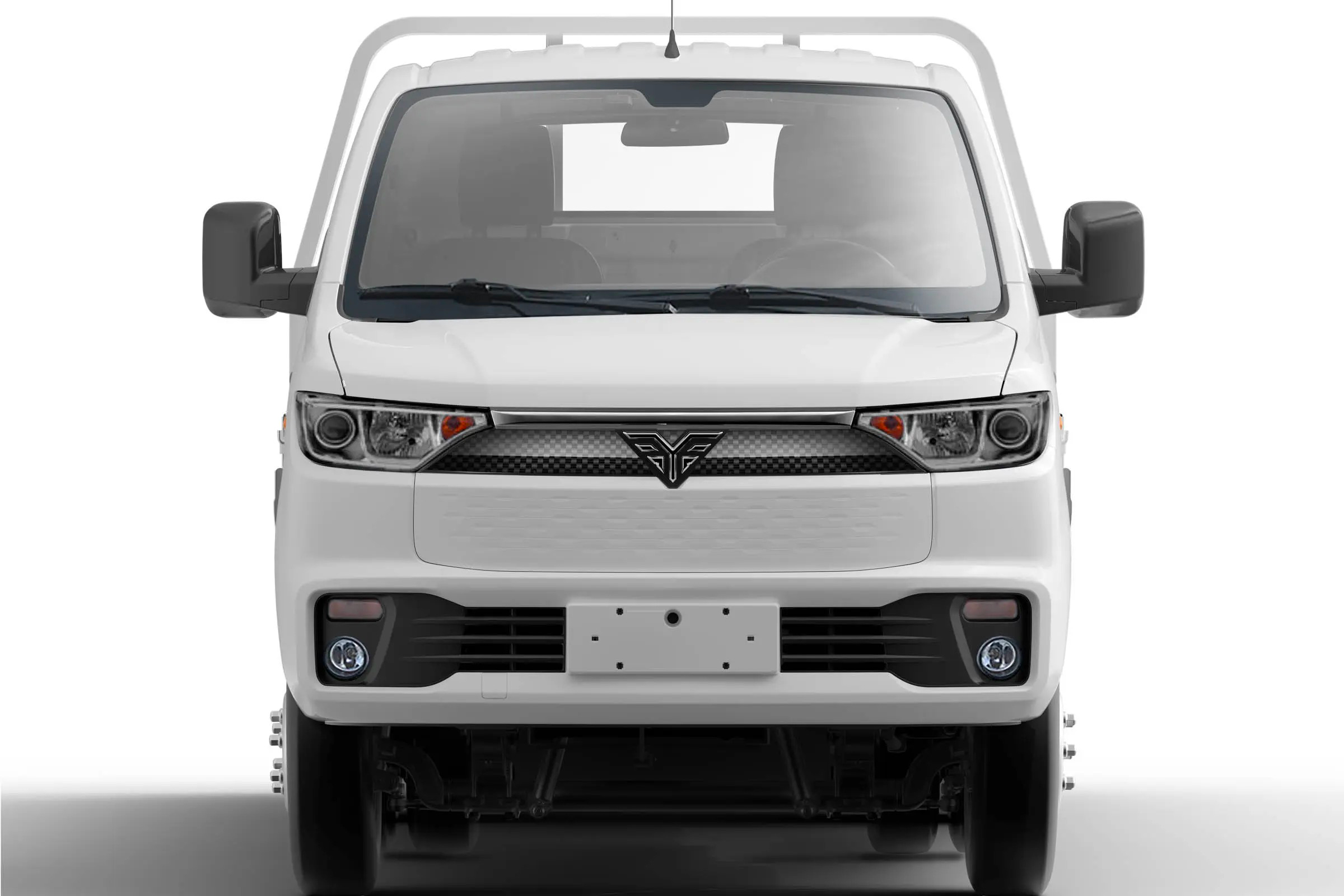

- Double trapezoidal front, fashionable front grill, silver textured logo
- Advanced crystal headlights, fashion dynamics, high luminosity
- The largest cargo space in the category, offers to customer different choices
- 7-inch multi-functional touch screen, classic T-type central control panel design, simple functionality and a logical layout for easy control

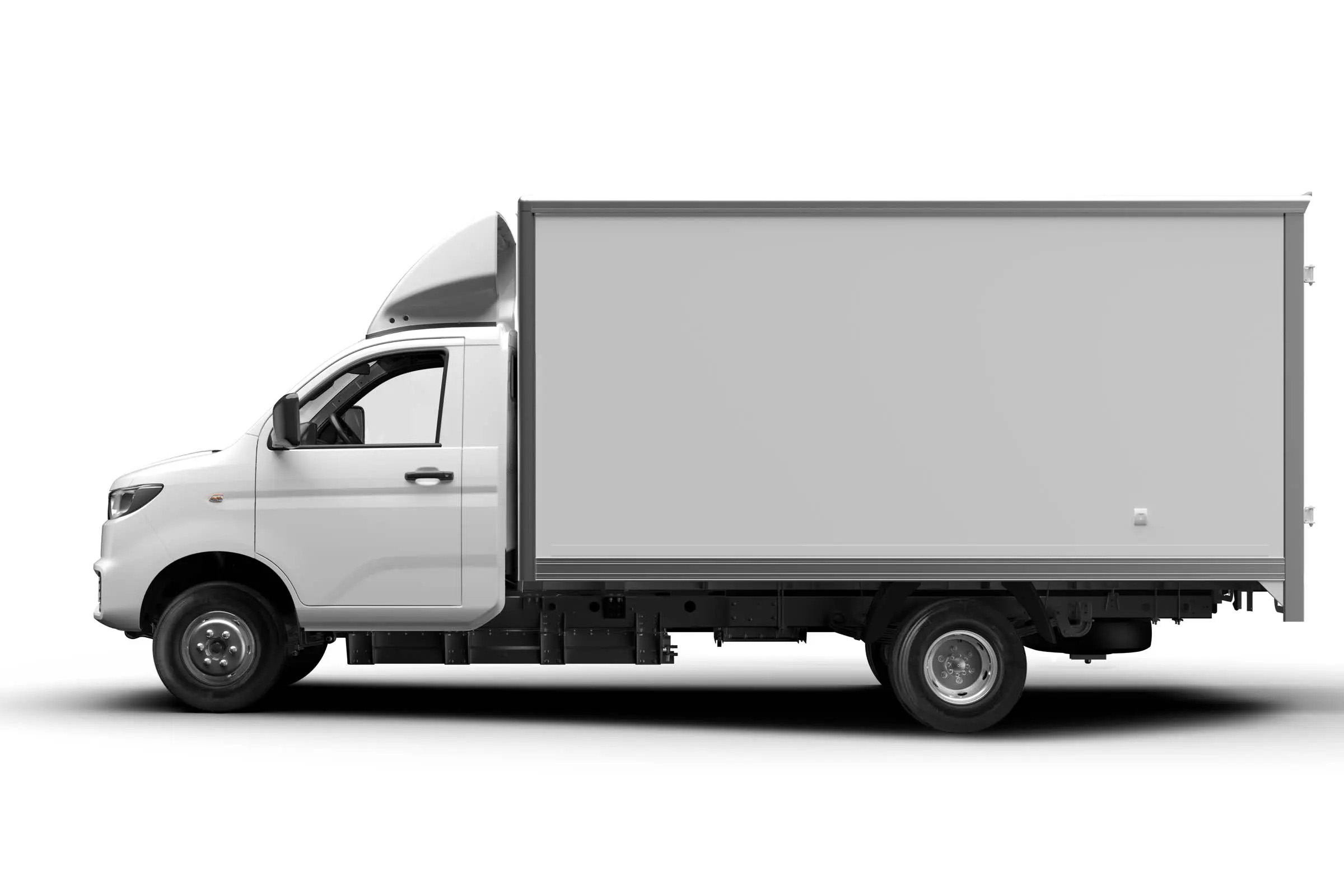

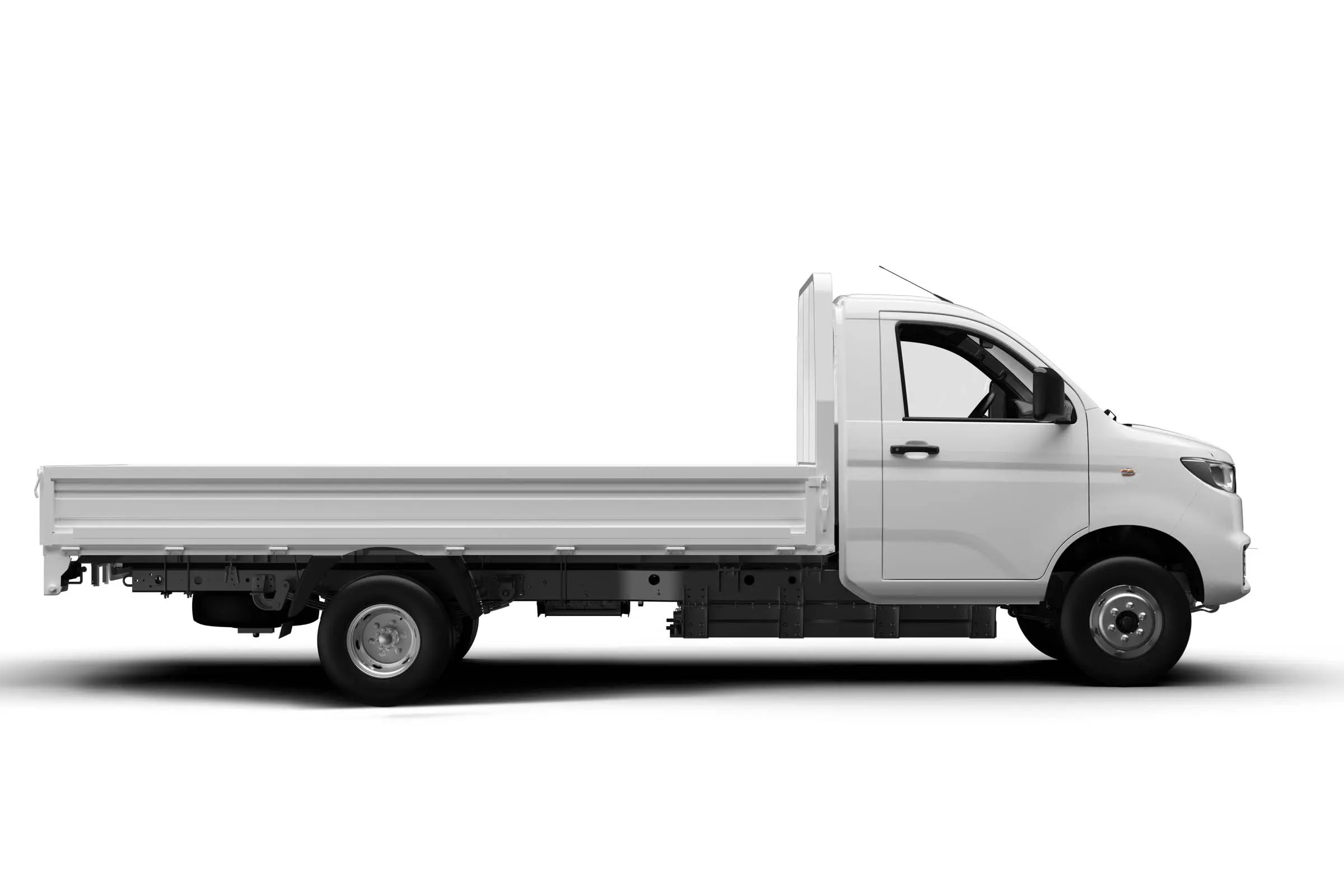

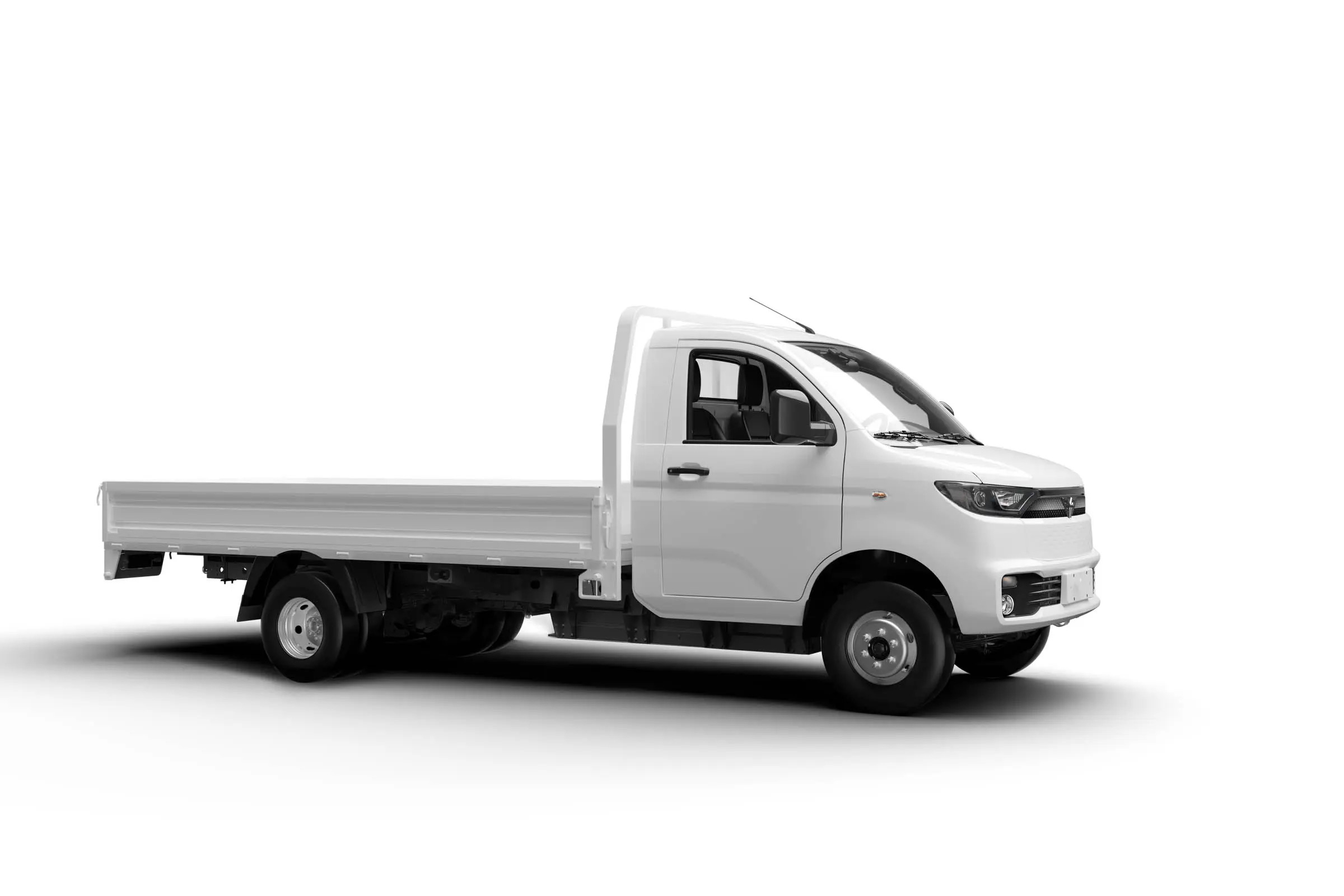

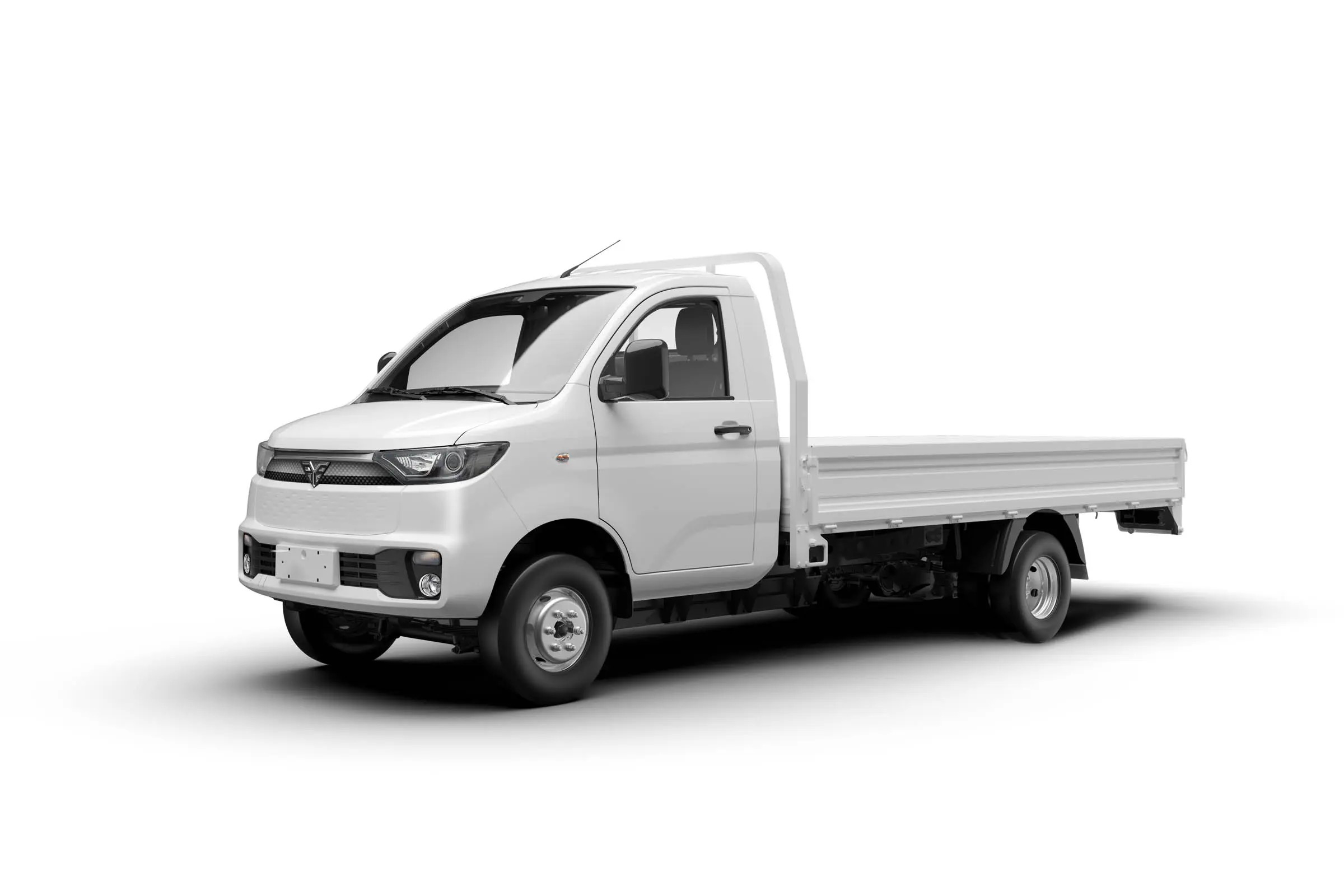

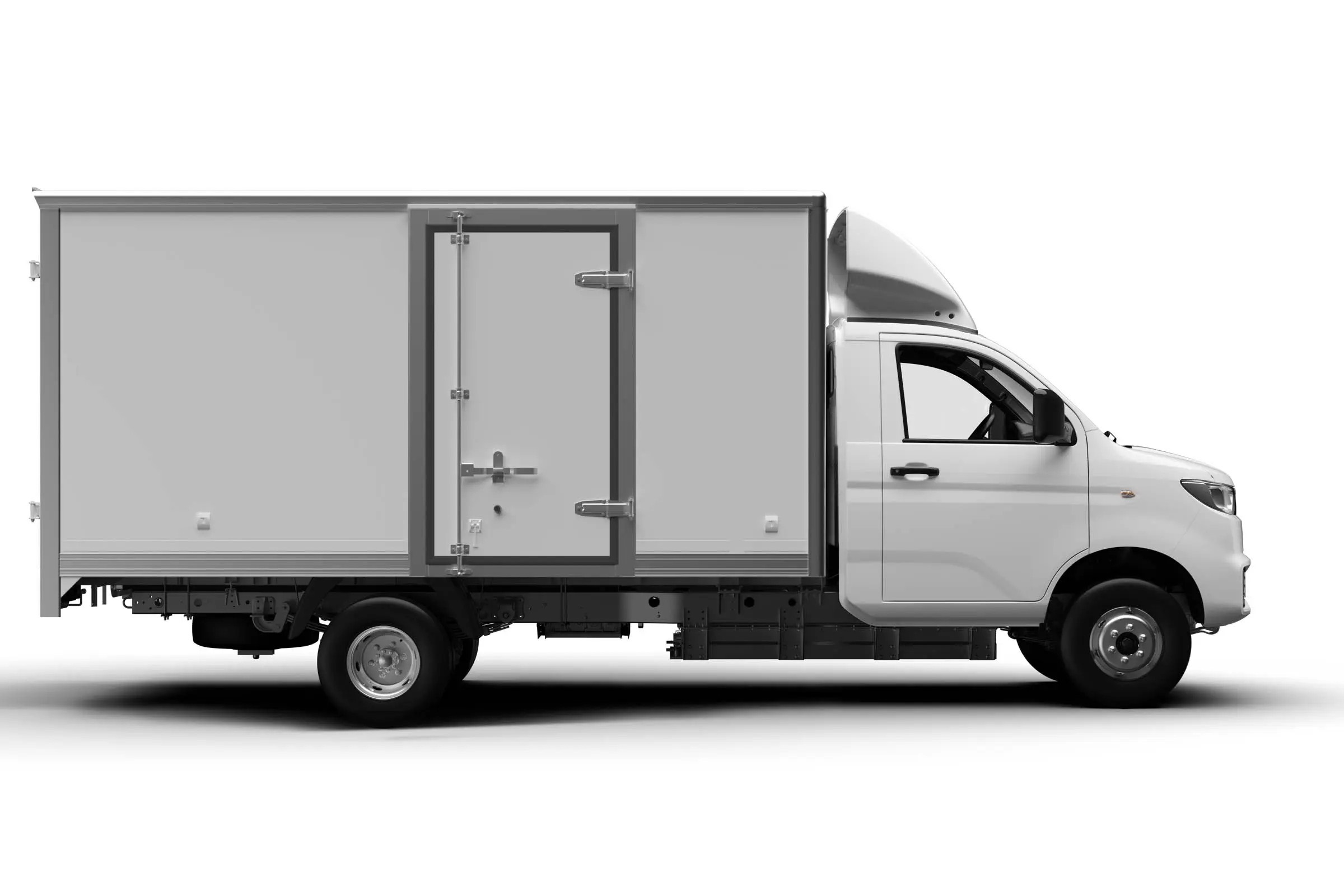

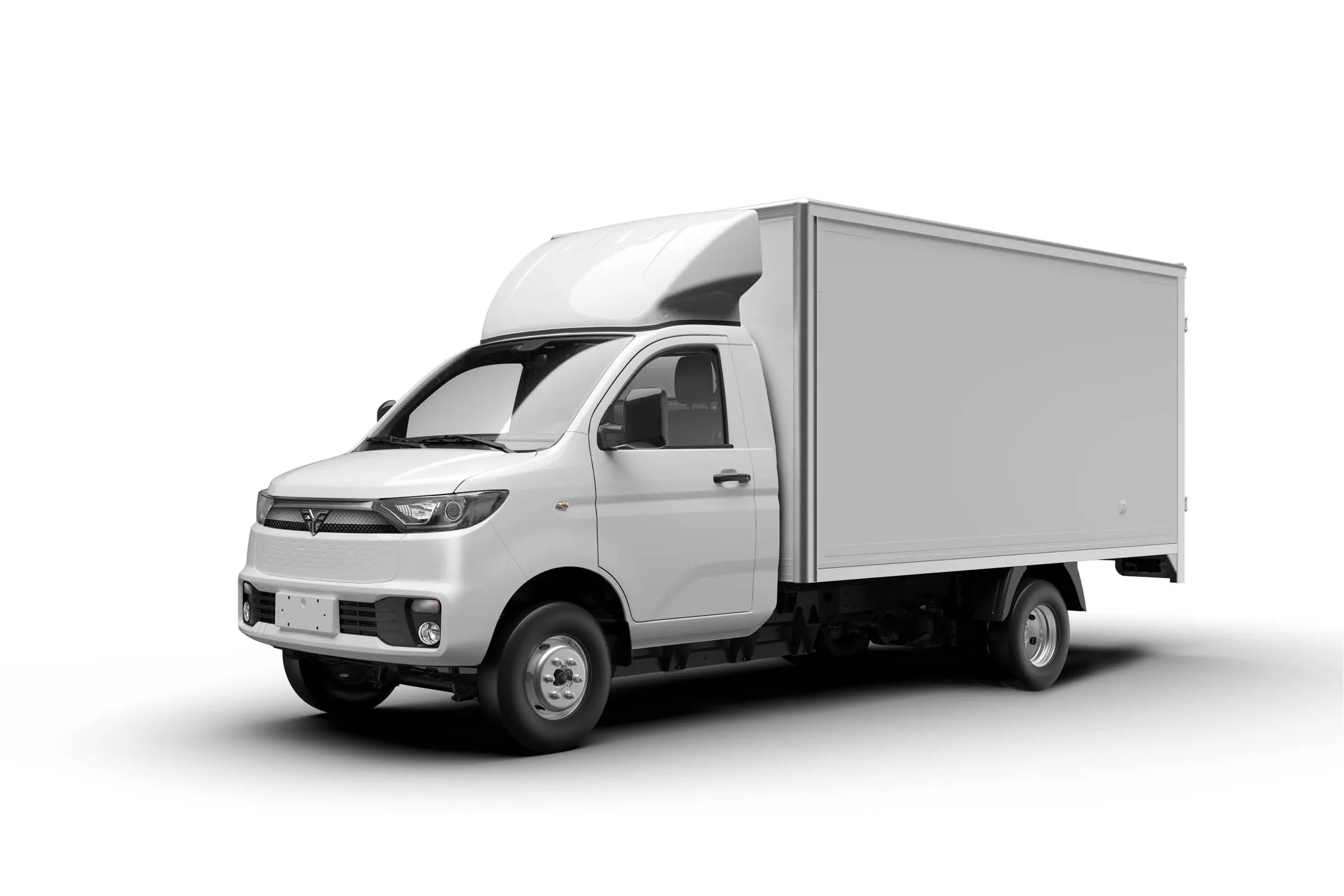

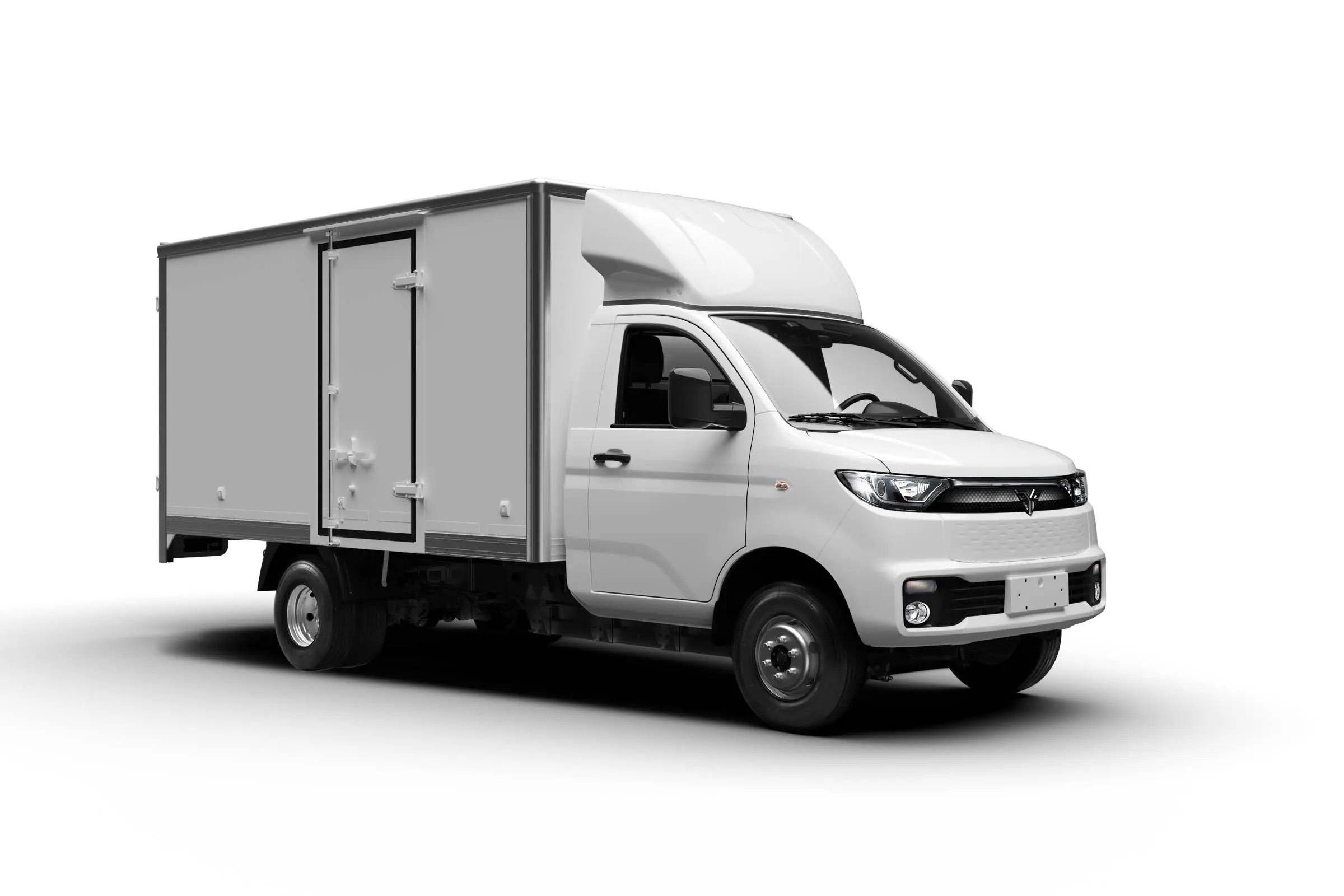

EV Small Truck
GALLERY DETAILS
TECHNICAL SPECIFICATIONS

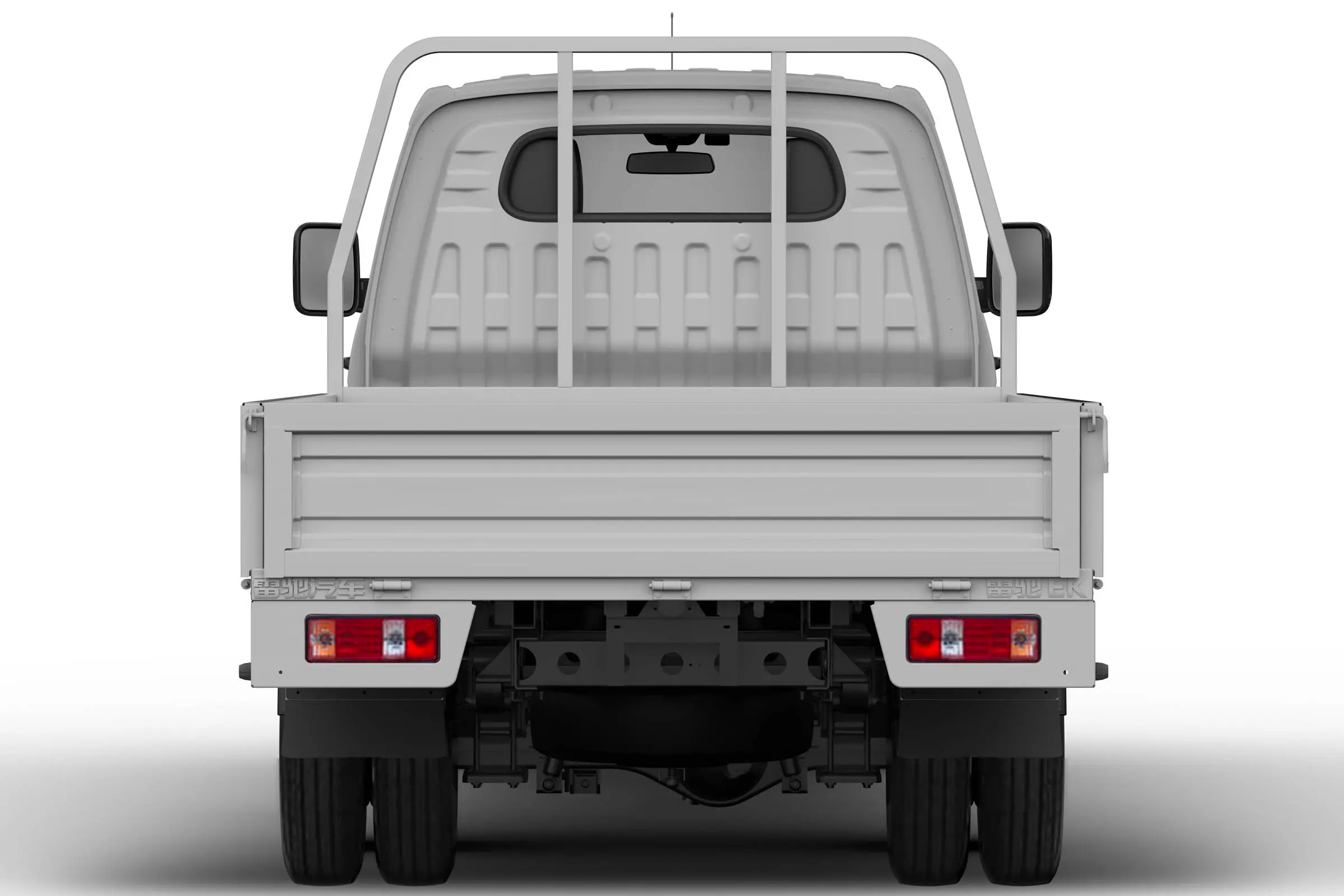

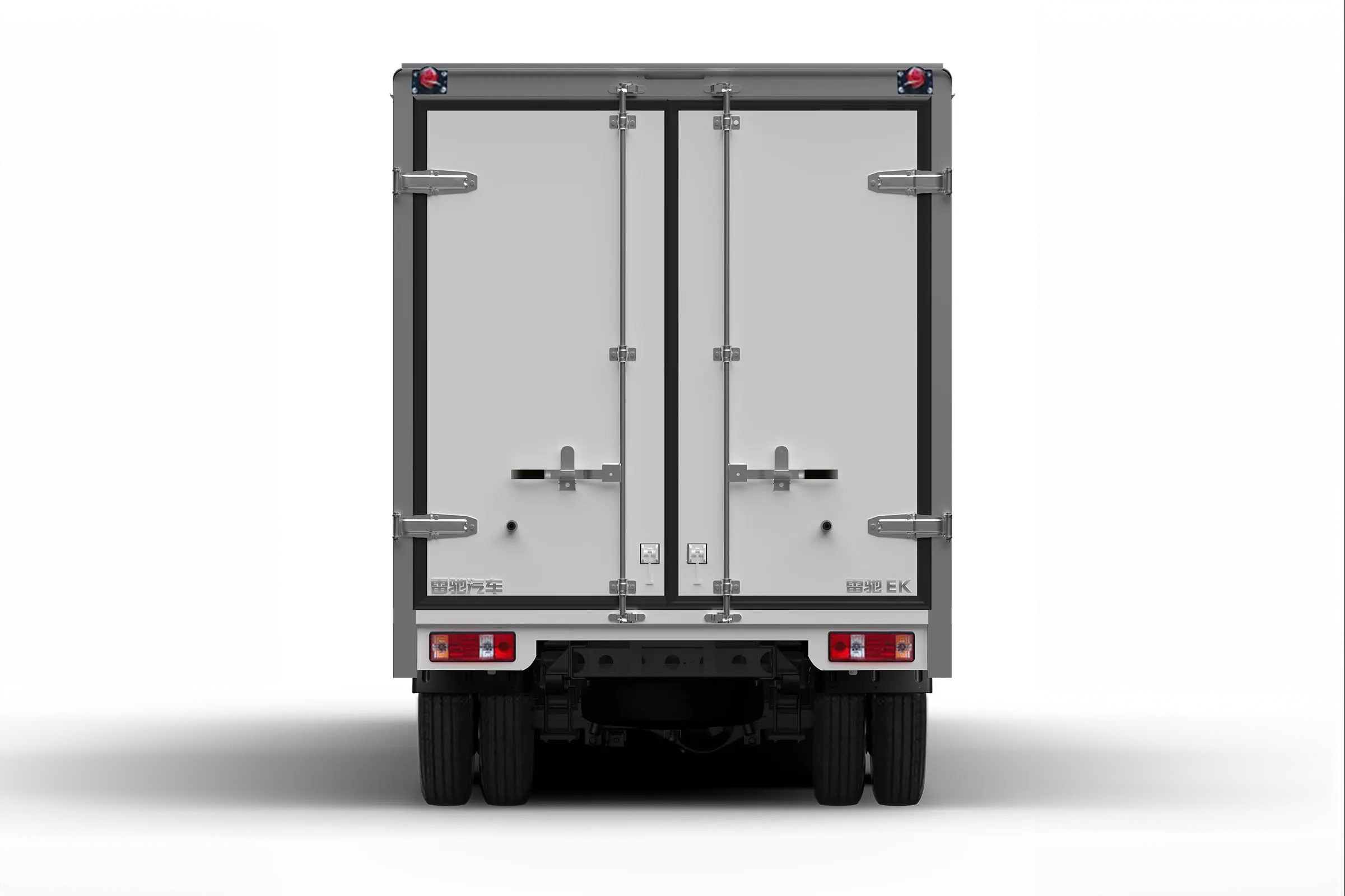

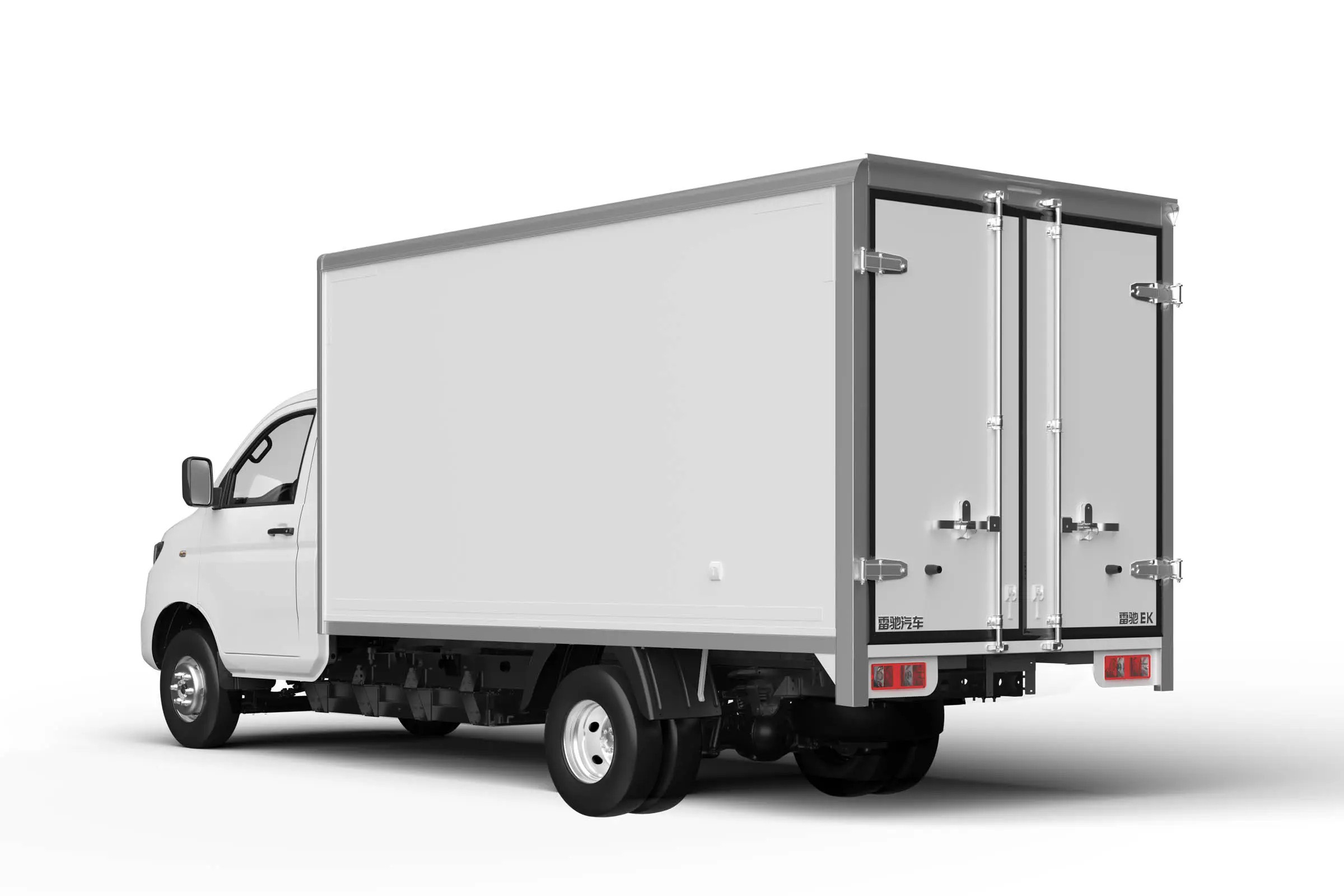

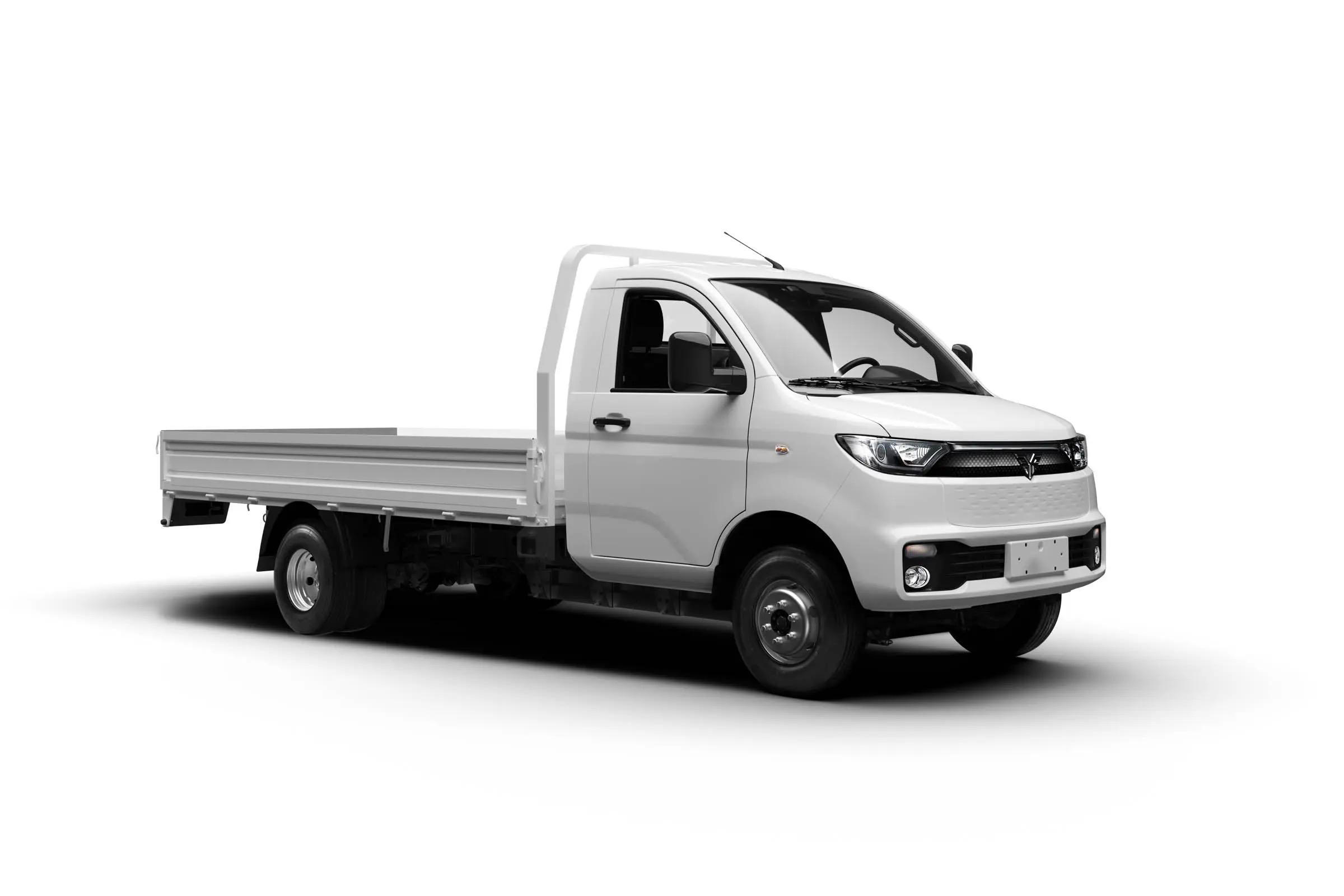

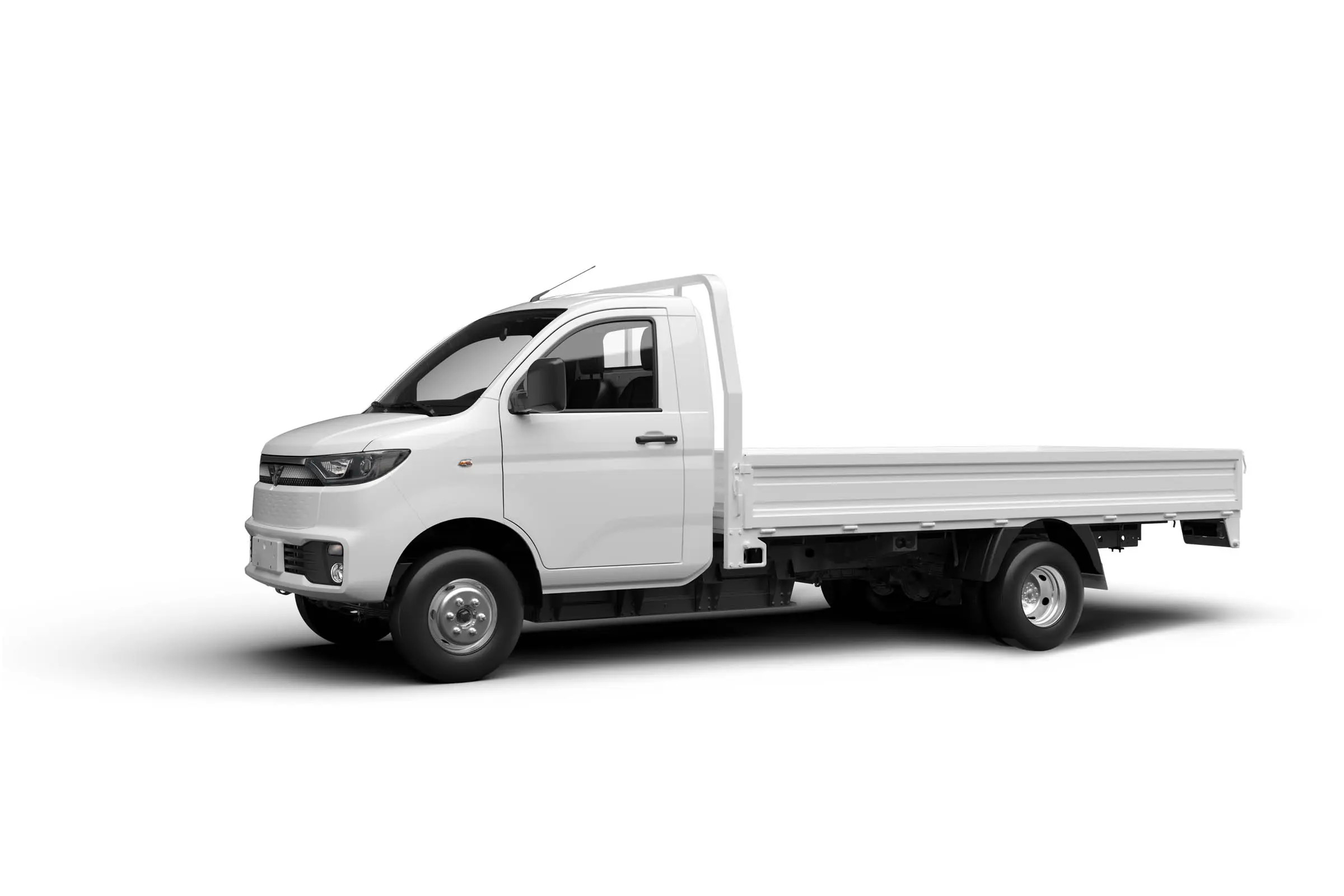

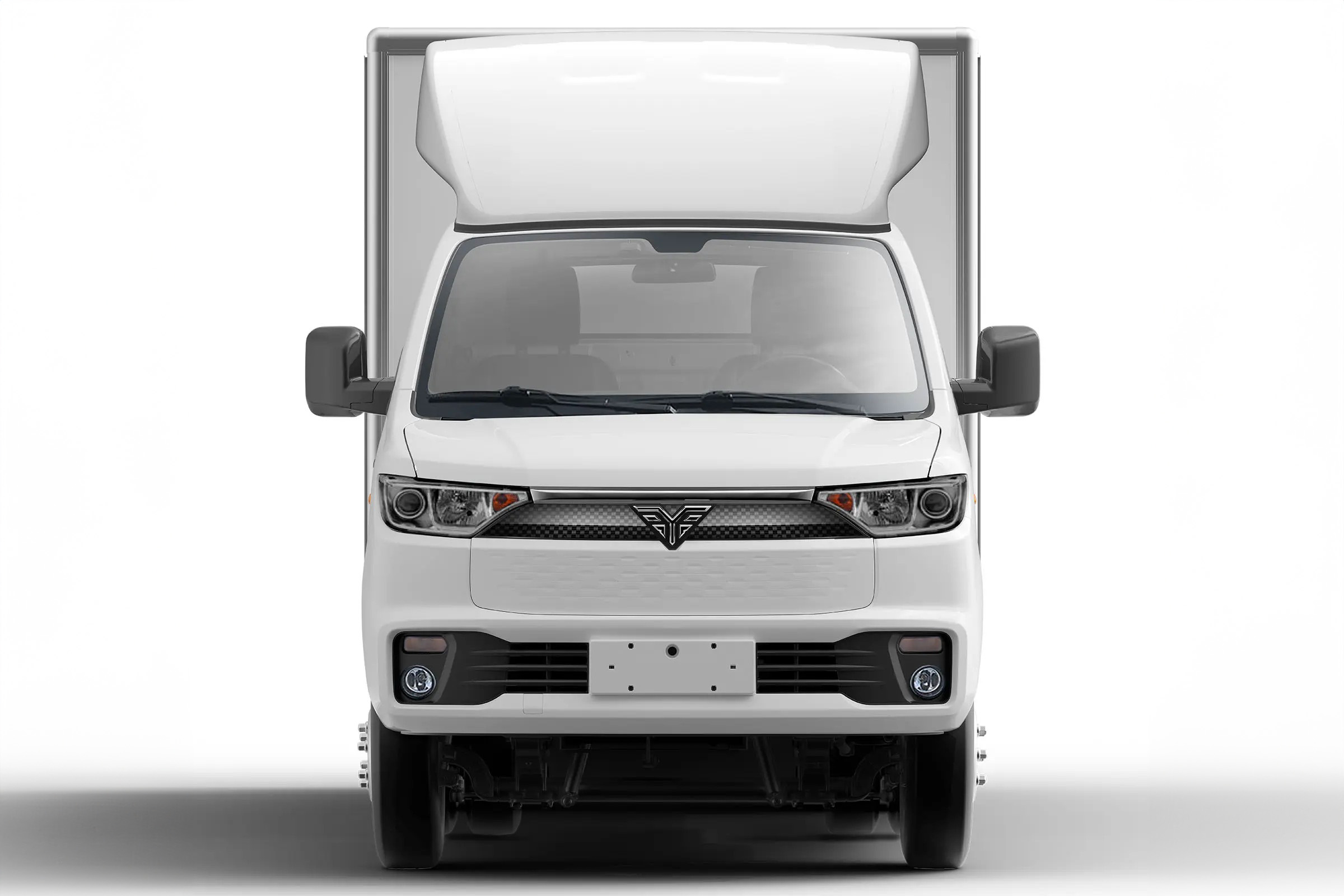

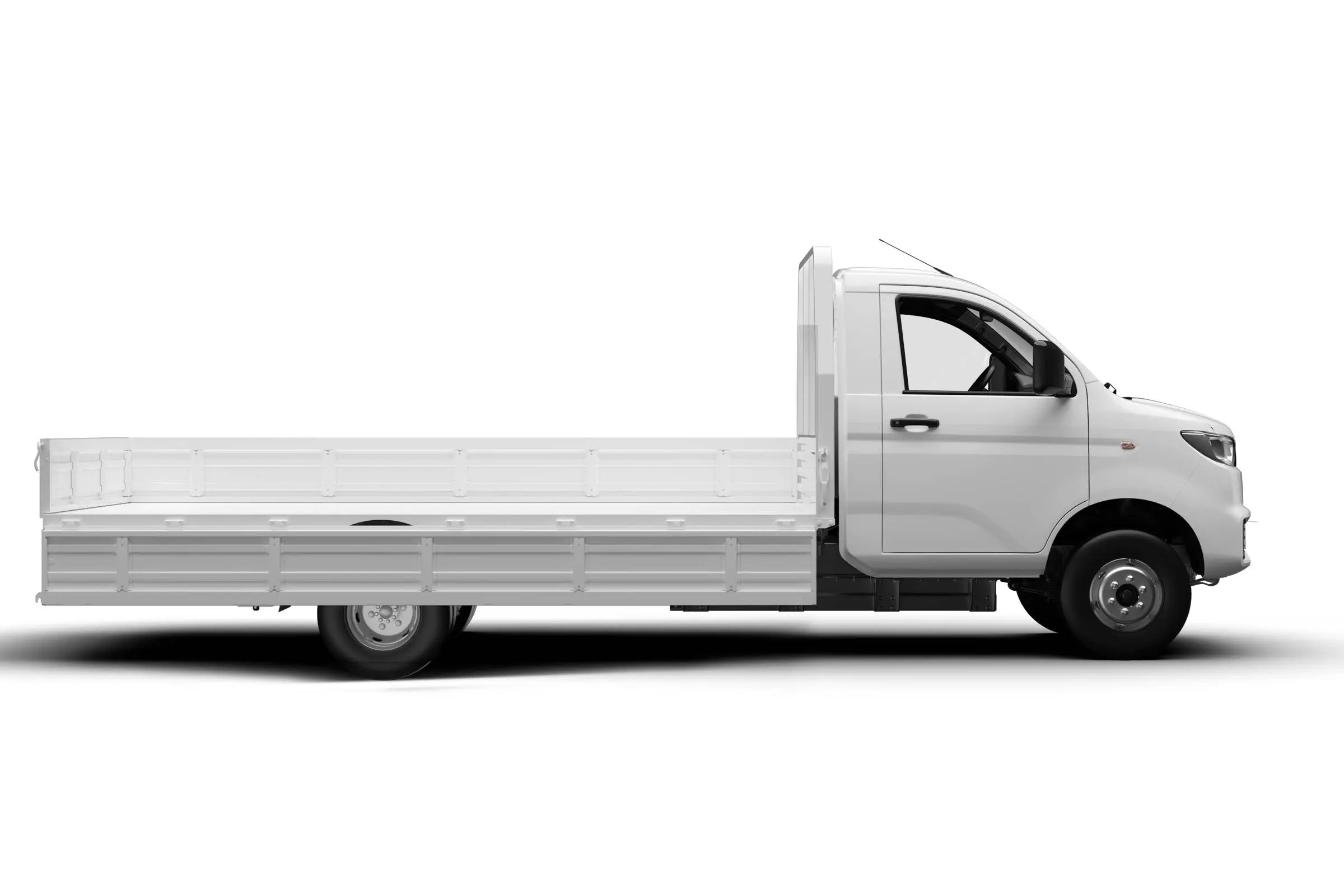

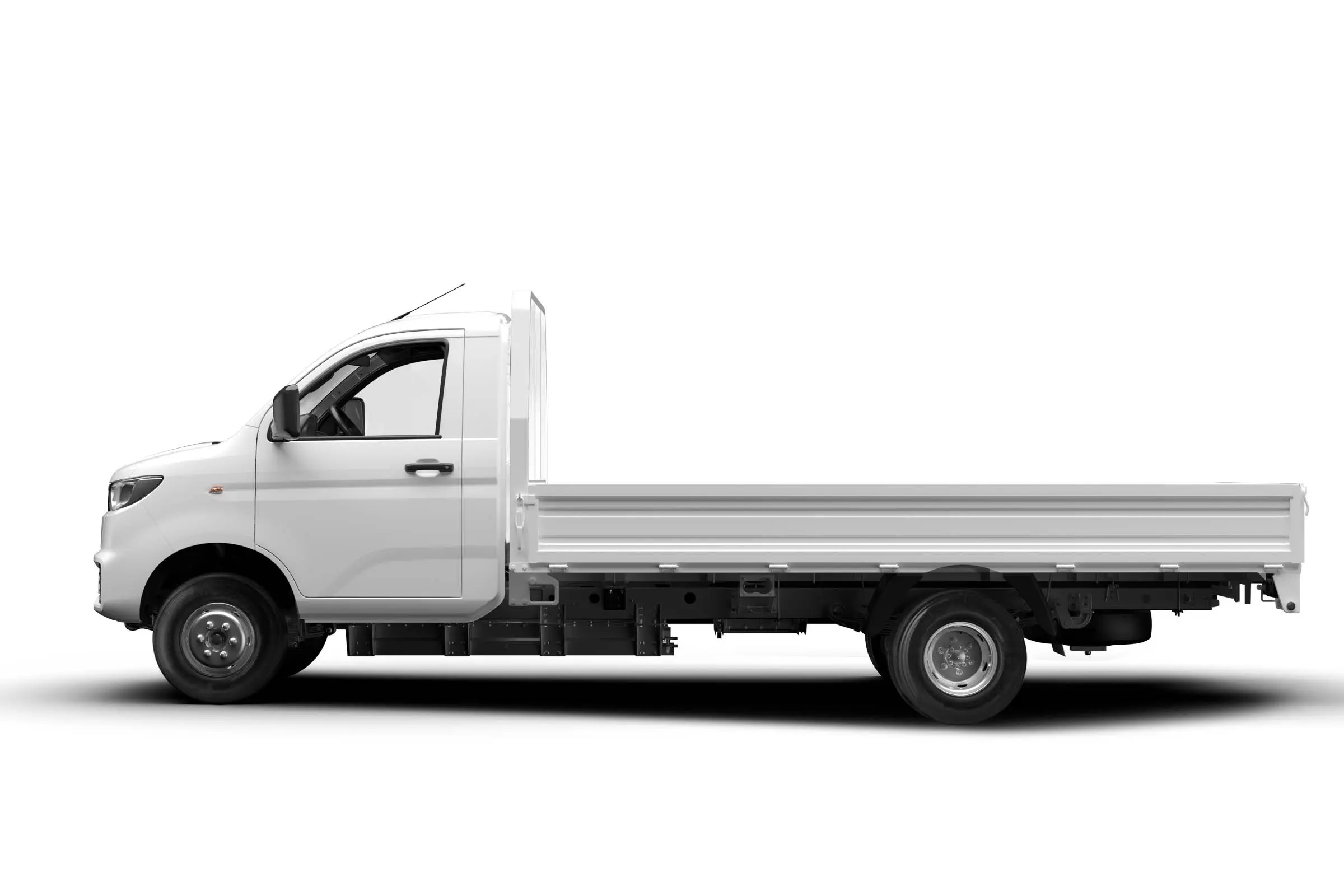

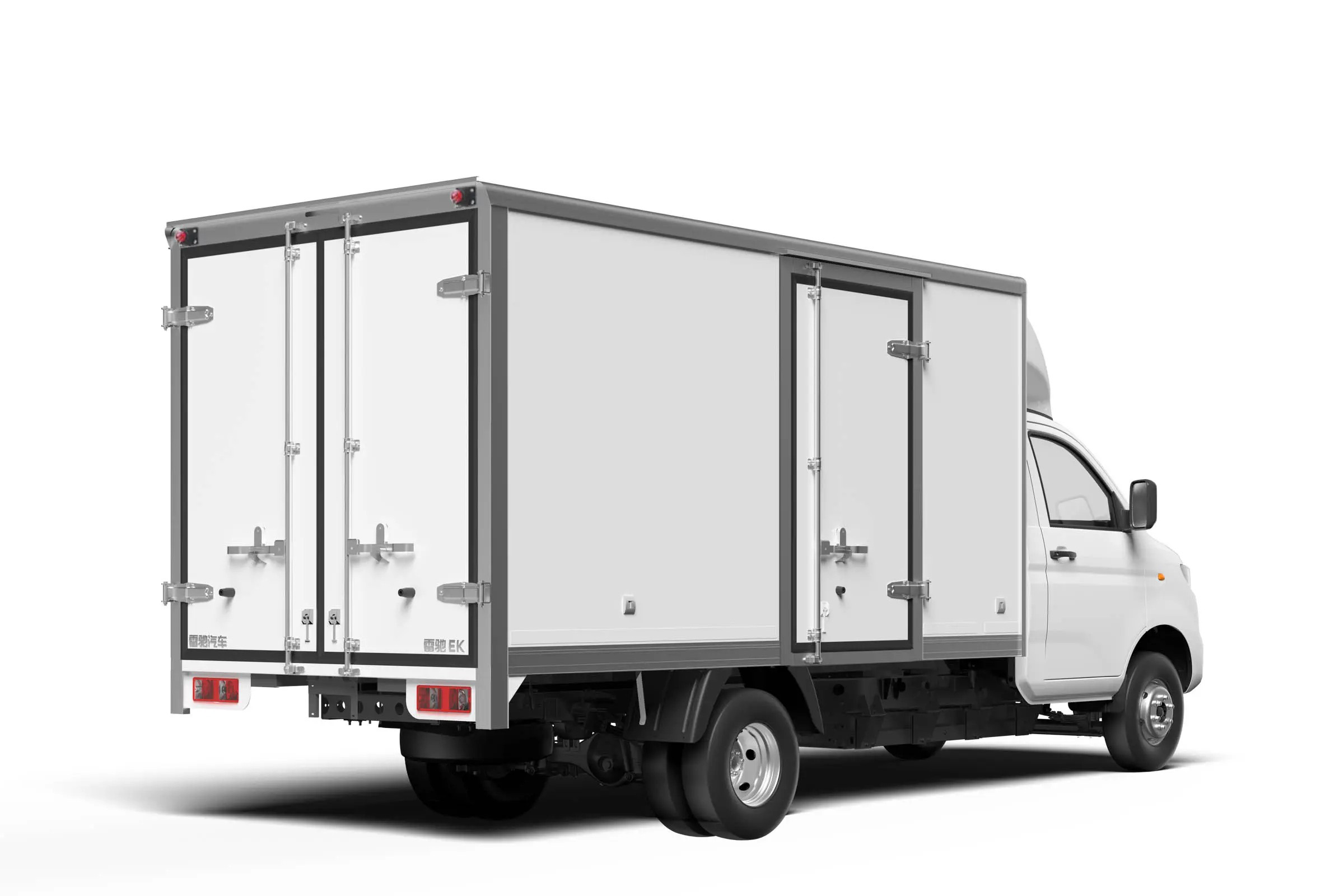

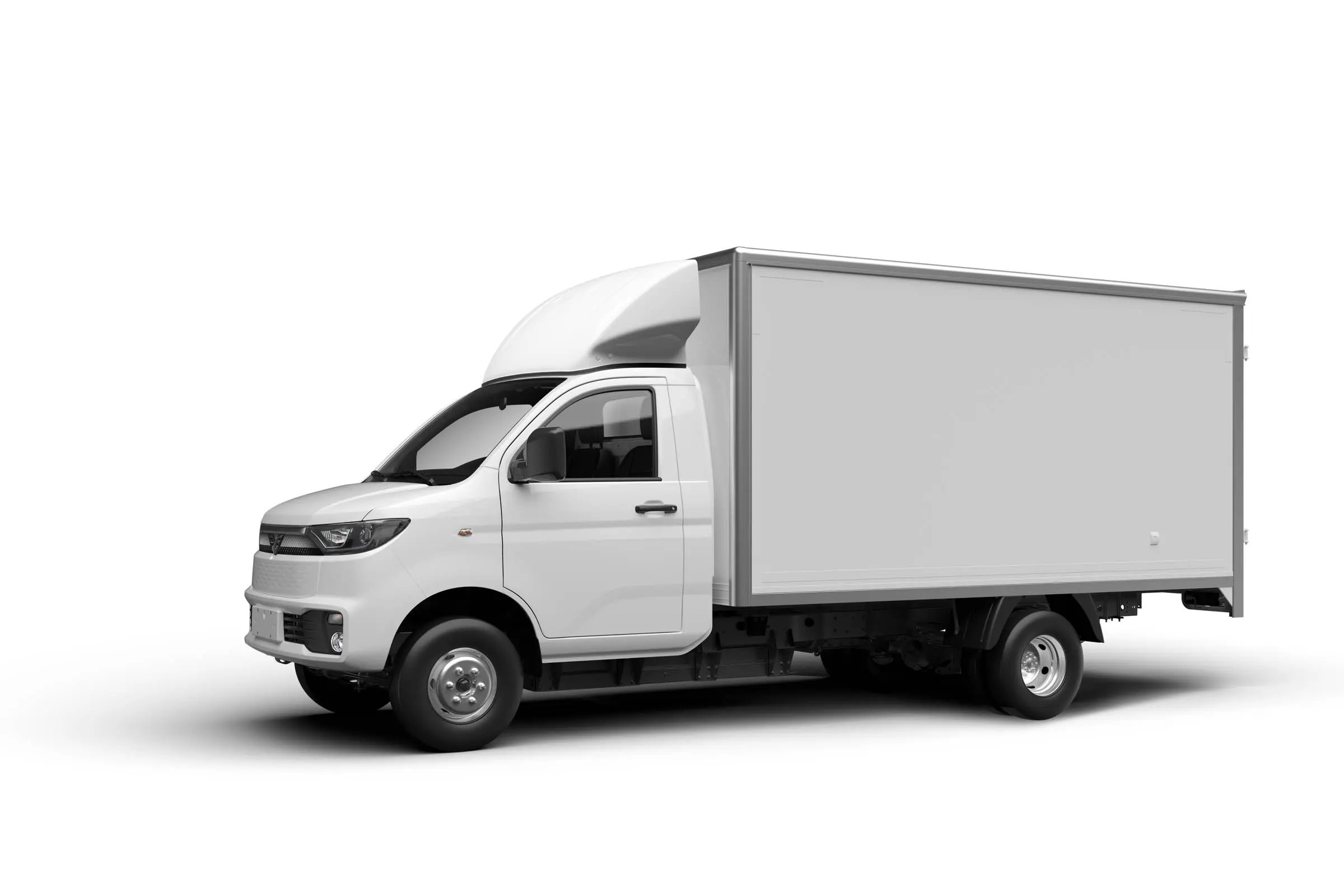

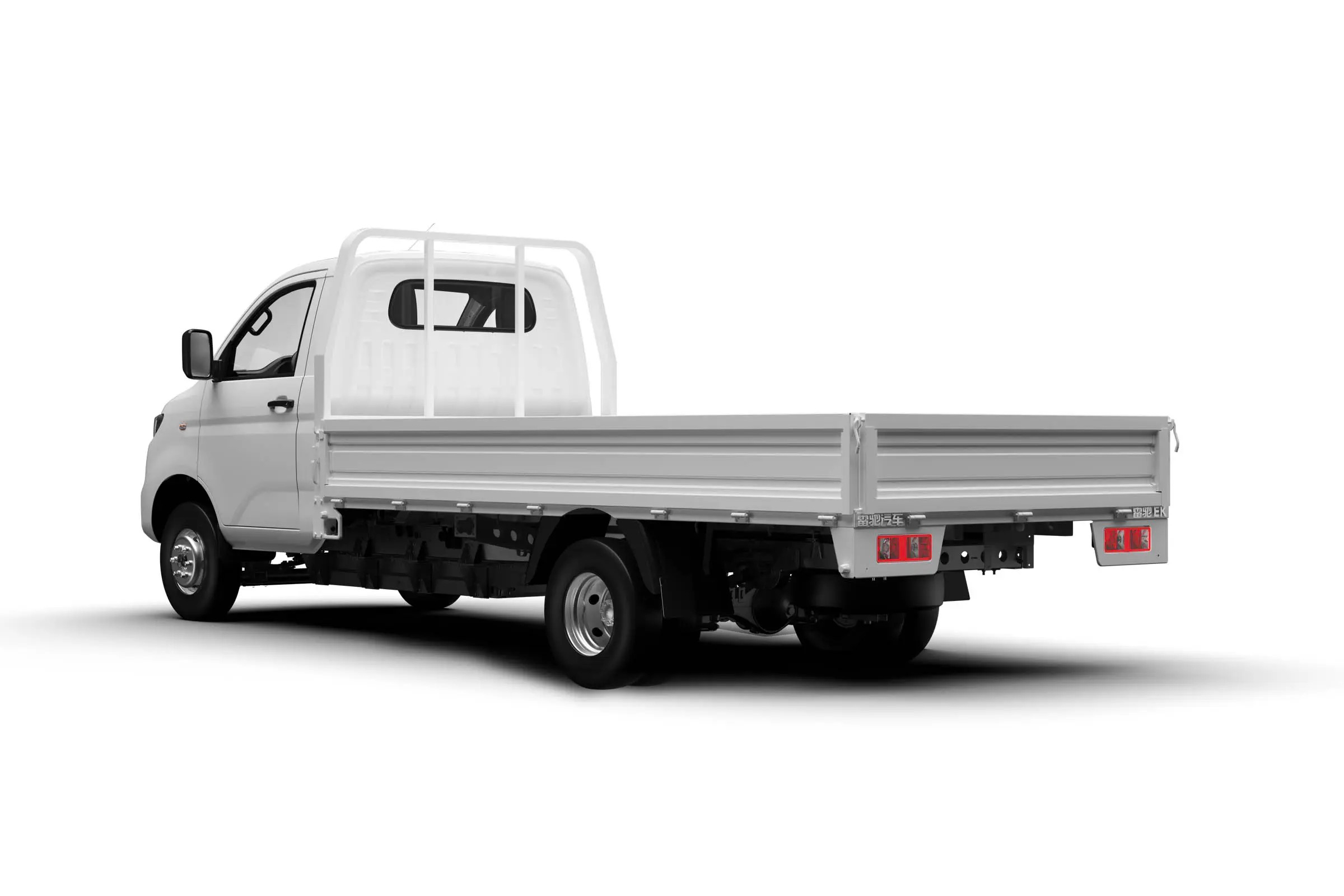

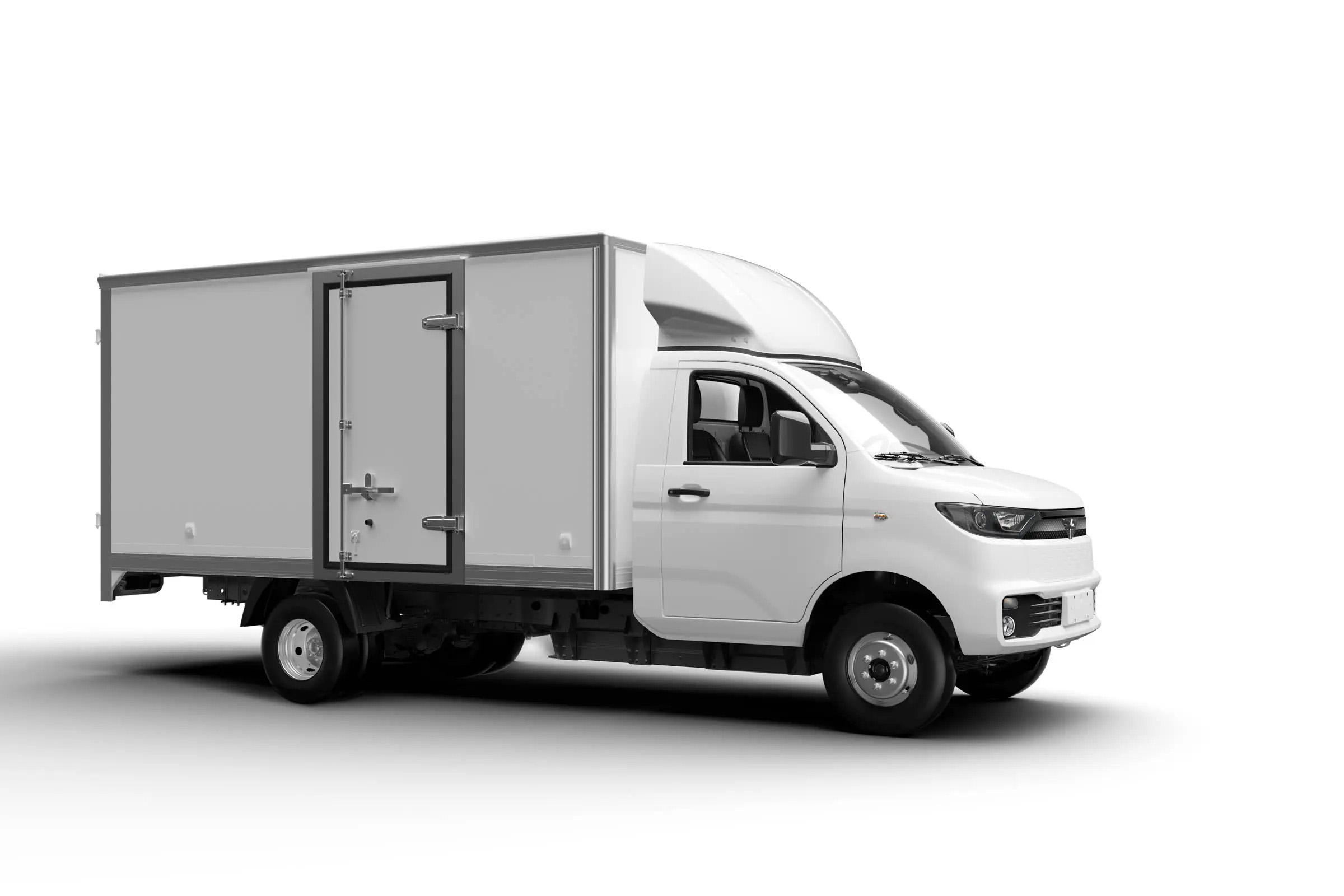

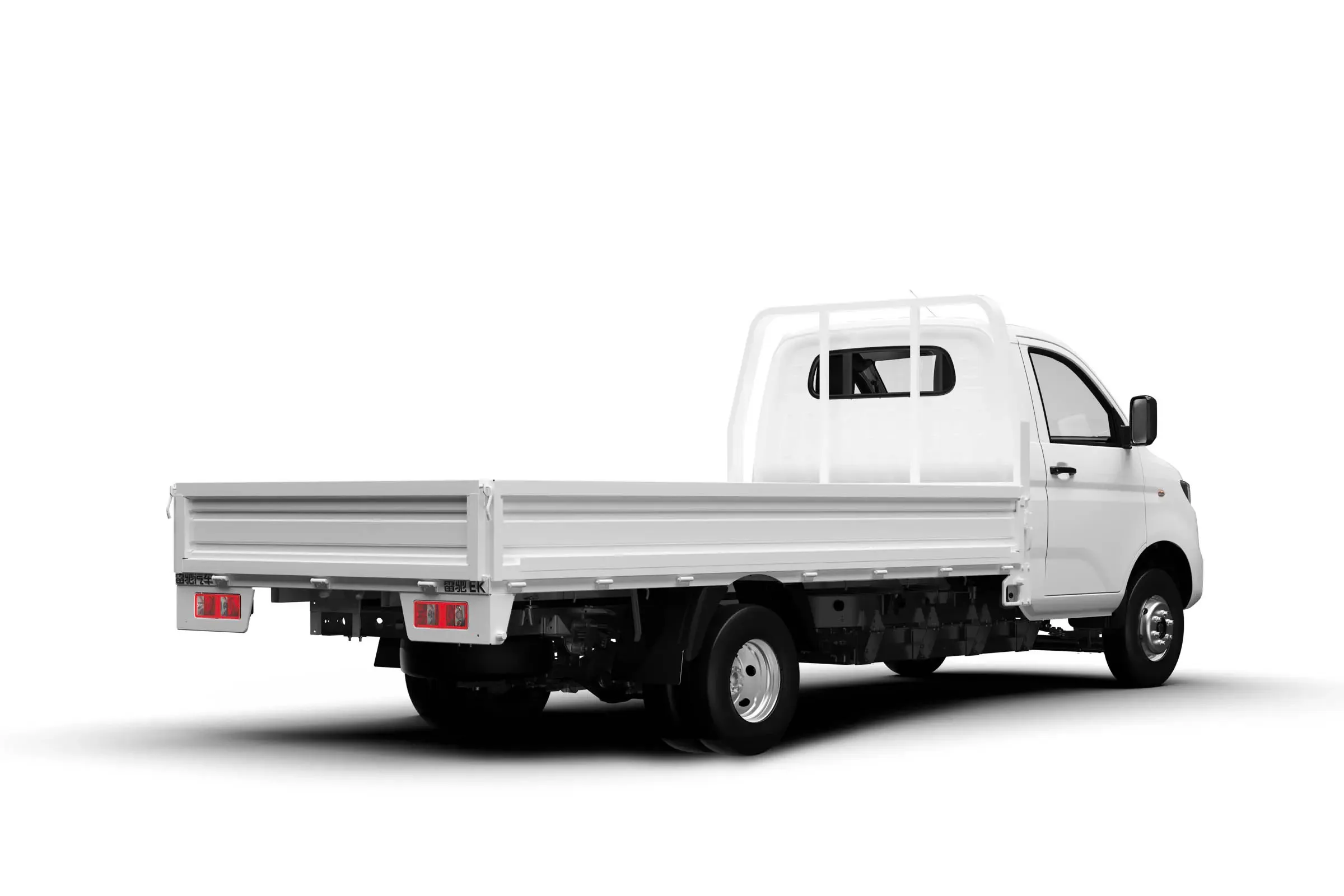

| T30 Pick Up | T30 Van | ||
|---|---|---|---|
| Body structure | Two doors and two seats | ||
| Dimension (mm) | 5980*1880*2060 | 5965*1880*2650 | |
| Cargo body dimensions(mm) | 3700*1780*360 | 3700*1750*360 | |
| Wheelbase (mm) | 3600 | 3600 | |
| Minimum ground clearance (mm) | 170 | 170 | |
| Curb weight(kg) | 1910 | 2235 | |
| Minimum ground clearance(mm) | 170 | 170 | |
| Front and rear suspension | Front and rear leaf springs are not independently suspended | ||
| Drive type | Front and rear wheel drive | ||
| Brake type | Front disc/rear drum | ||
| Tire specifications | 185R14LT 8PR | 185R14LT 8PR | |
| Battery type | Lithium iron phosphate | ||
| Battery capacity (kWh) | 55.06 | 55.06 | |
| Top speed(km/h) | 80 | 80 | |
| Mileage(km) | 280 | 280 | |
| Maximum torque(N m) | 270 | 270 | |
| Rated/maximum power (kW) | 45/90 | 45/90 | |
| Body structure | 2 doors and 2 seats |
| Dimension (mm) | 5785*1880*2030 |
| Cargo box size (mm) | 3500*1780*360 |
| Wheelbase (mm) | 3600 |
| Front/rear trackbase (mm) | 1490/1448 |
| Ground clearance (mm) | 170 |
| Curb weight (kg) | 2085 |
| Payload capacity (kg) | 1985 |
| Suspension front/rear | Leaf Spring Non-independent, 5/5+2 |
| Drive type | Rear drive |
| Brake type | Disc/Drum |
| Tire type | 185R14LT 8PR |
| Battery type | Lithium iron phosphate battery (BMS) |
| Battery capacity (kWh) | 55,7 |
| Max speed (km/h) | 85 |
| Range (km) | 270 |
| Motor type | PMS |
| Max Torque (N m) | 310 |
| Rated power/Max power (kW) | 45/90 |
